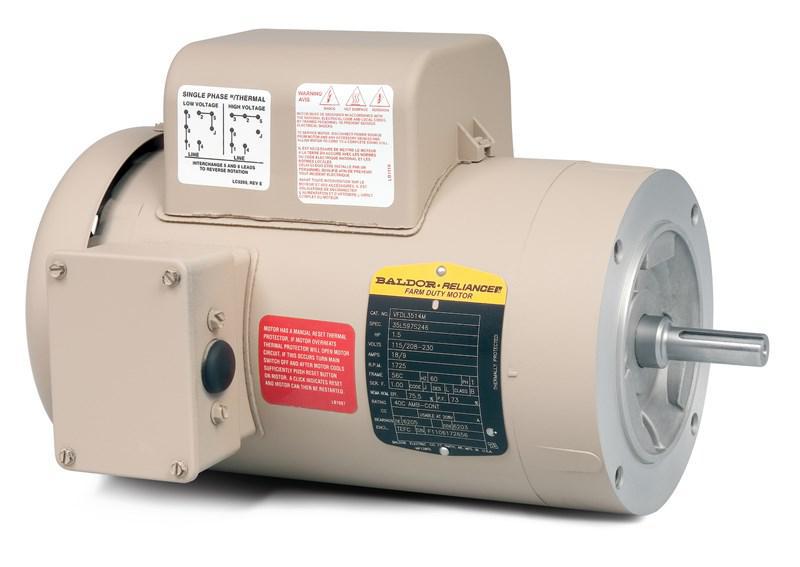

Baldor-Reliance VFDL3514M
Baldor-Reliance VFDL3514M C-Face Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1-1/2 hp, 115/208/230 VAC, 60 Hz, 1 Phase, 56C Frame, 1725 rpm Speed, F-1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand: Baldor-Reliance
- BSC Item#: VFDL3514M BLDR
- MPN: VFDL3514M
- UPC: 781568154250
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: EACH
-
Login to see price
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance AC Motor, C-Face Continuous Duty, Farm Duty Motors, General Purpose AC Motors, Fan & Blower Motors Application, 3532LC Motors, Direct On Line Starting Method Special Features, 1-1/2 hp, 115/208/230 VAC, 12.4/6.8/6.2 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, F-1 Mounting, 40 to 176 deg C, Insulation Class: Class F, Steel, 14.12 in L Dimensions
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
Catalog
| Standard/Approvals | : | ARRA Compliant|Buy American Act Compliant|CSA Certified|UR Recognized |
| Application | : | Agri-Duty, Industrial Fans, General Purpose Farm and Industrial Pumps |
