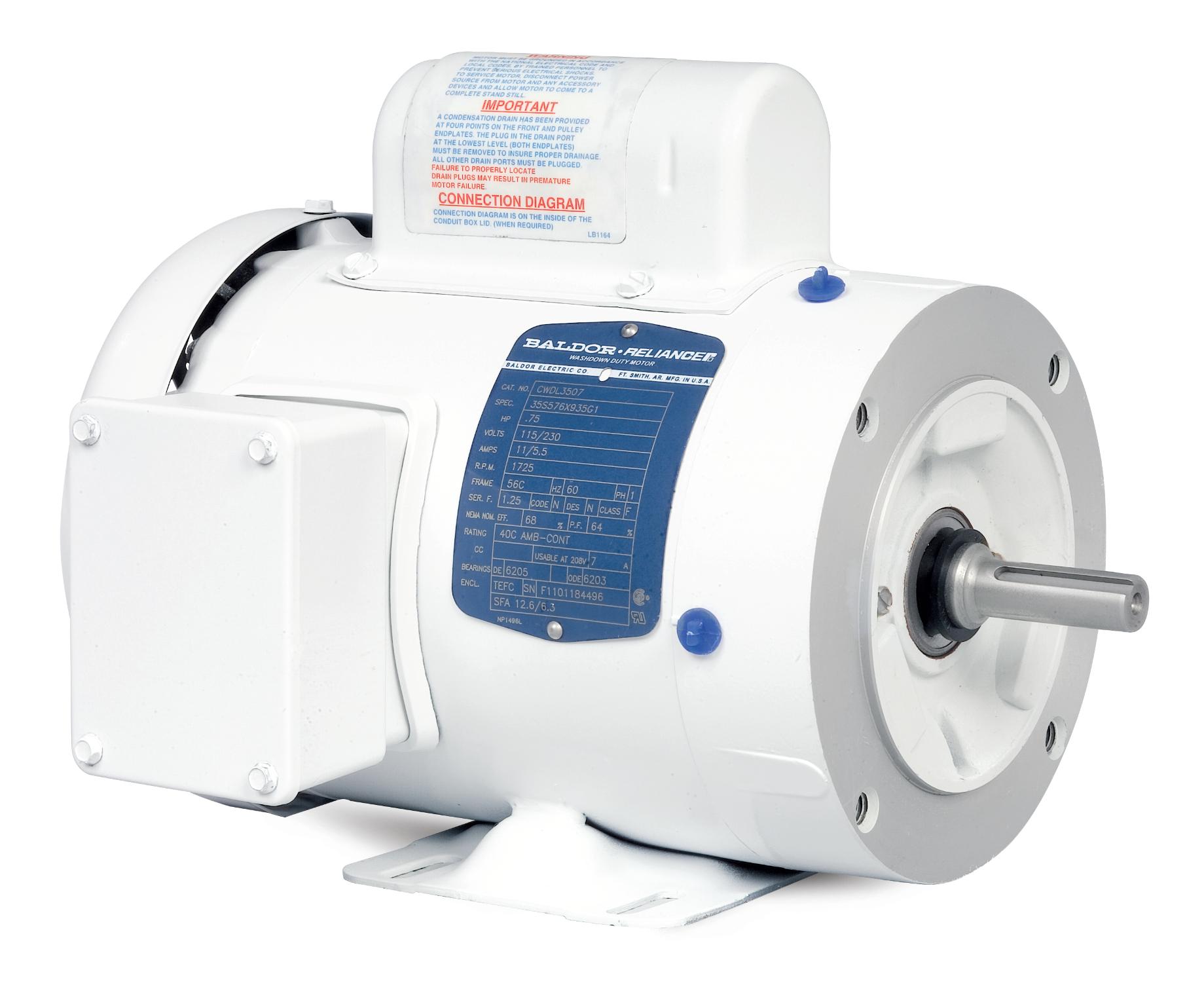

Baldor-Reliance
CWDL3510

Baldor-Reliance washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, Baldor offers motors from painted to stainless steel to meet the washdown needs of our customers.

Baldor-Reliance AC Motor, Continuous Duty Type 3524L, Sewage & Wastewater Pump Motors Application, Washdown Duty Motors Special Features, 1 hp, 115/208/230 VAC, 12.8/7/6.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Sealed Bearing, 3 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Steel, 13.23 in L x 9.88 in W x 9.05 in H Dimensions

• Neoprene gaskets
• Double sealed ball bearings
• Lip and V-ring seal on drive end
• Electrostatically applied epoxy finish

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CWDL3510_Line_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bddc539ac2a09c4cf40041c21a0ecc70feef85652d2622252aca2d64f0b292d1.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
