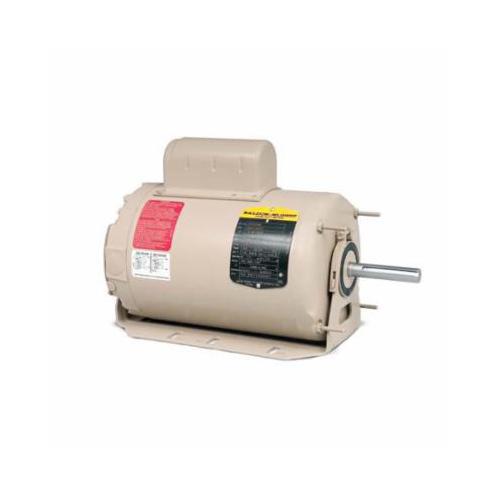

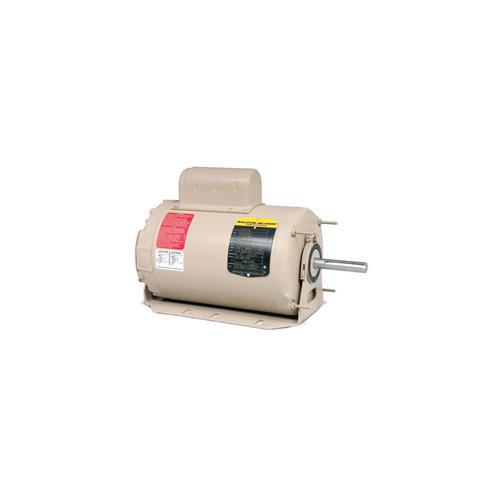

Baldor-Reliance
CHC3526A

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance AC Motor, Continuous-Duty, Farm Duty Motors, Fan & Blower Motors, Unit Heater Motors Application, 3535C Motors, Direct On Line Starting Method Special Features, 1/2 hp, 115/230 VAC, 9.2/4.6 A, 60 Hz Frequency, 1 ph, 825 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 56Z Frame, 5/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 4.9 ft-lb Torque, F-1 Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 14.42 in L Dimensions

• Switchless design for increased reliability
• 1 in extended through bolts for grille mounting
• Terminal panel for ease of connectivity
• Automatic thermal overload protection
• Lubed for life double shielded ball bearings

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CHC3526A_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CHC3526A_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CHC3526A_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_630ba9a0691cc1e400b5672e871290579e674ec8a318178b372d747694dfd34b.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
