Baldor-Reliance
PL3519M

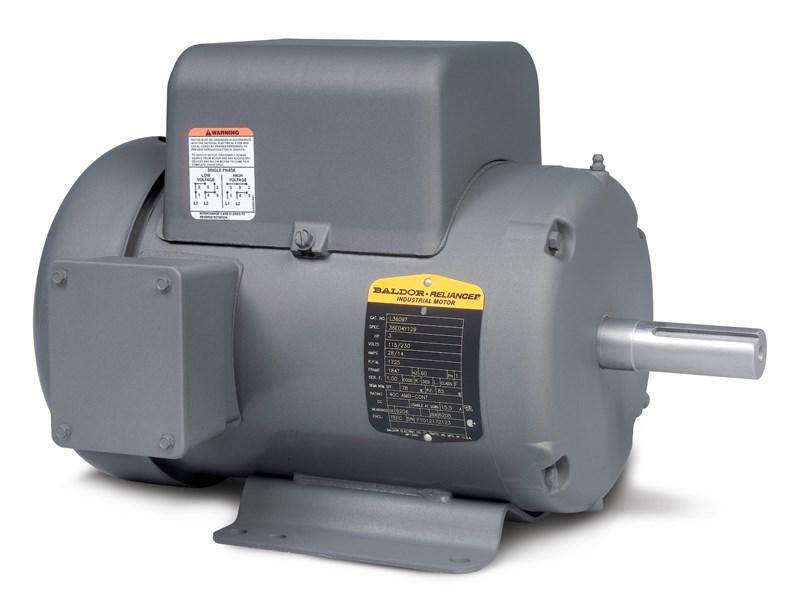

Baldor-Reliance PL3519M Definite Purpose AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230 VAC, 60 Hz, 56 Frame, 3450 rpm Speed, F1 Foot Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: PL3519M BLDR
  • MPN: PL3519M
  • UPC: 781568112366
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Baldor-Reliance AC Motor, Definite Purpose, General Purpose AC Motor Application, Continuous Duty Motor Special Features, 3 hp, 230 VAC, 12.5 A, 60 Hz Frequency, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.54 ft-lb Torque, F1 Foot Mounting, 40 deg C, Insulation Class: Class F, Steel, 14.12 in L Dimensions

  • Manual thermal overload located in the conduit box
  • Capacitor start, capacitor run
  • Without drip cover
  • Without auxiliary box
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dcaa69ee9cbe14e8a0f664a31d899791cb468162f74a0d6d0436178165bacf58.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL Recognized
Application      :      For pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs
