Baldor-Reliance

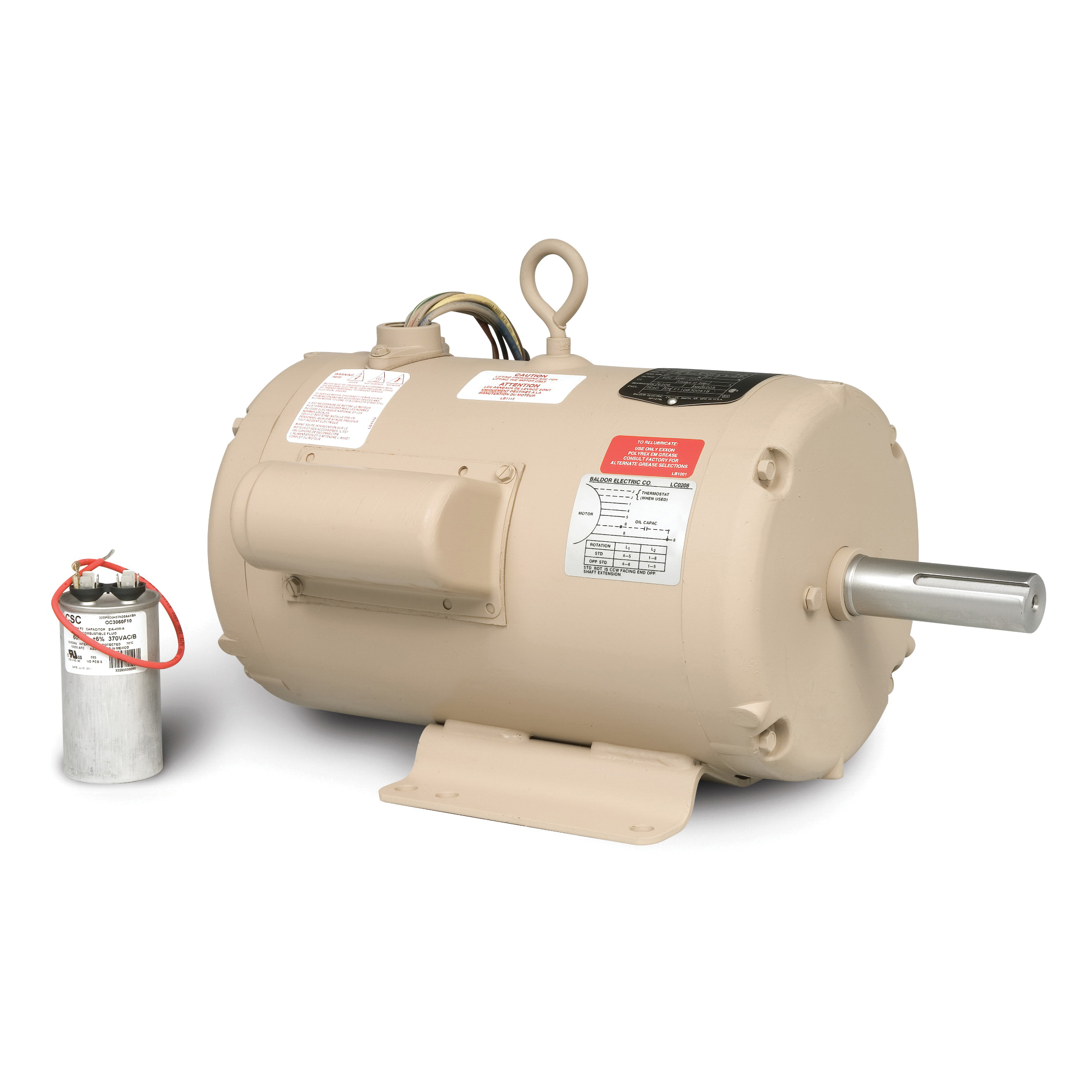

UCLE570

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance AC Motor, Continuous Duty Direct On Line Type 3646LC, Fan & Blower Motors, General Purpose AC Motors, Grain Dryer Motors Application, 5/7 hp, 230 VAC, 20.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 182TZ Frame, 1-1/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 10.8 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Insulation Class: Class H, Steel, 16.88 in L x 8.63 in W x 10.86 in H Dimensions

• Shaft length 3/4 in longer than NEMA standard
• 1/4-20 tapped and keyed shaft
• Convenient lead location for ease of conduit connectivity
• Normally closed winding thermostats to protect against overheating
• Lubed for life double sealed ball bearings on TEAO motors
• Lip seal and V-ring slinger on drive end for increased moisture resistance on TEAO motors
