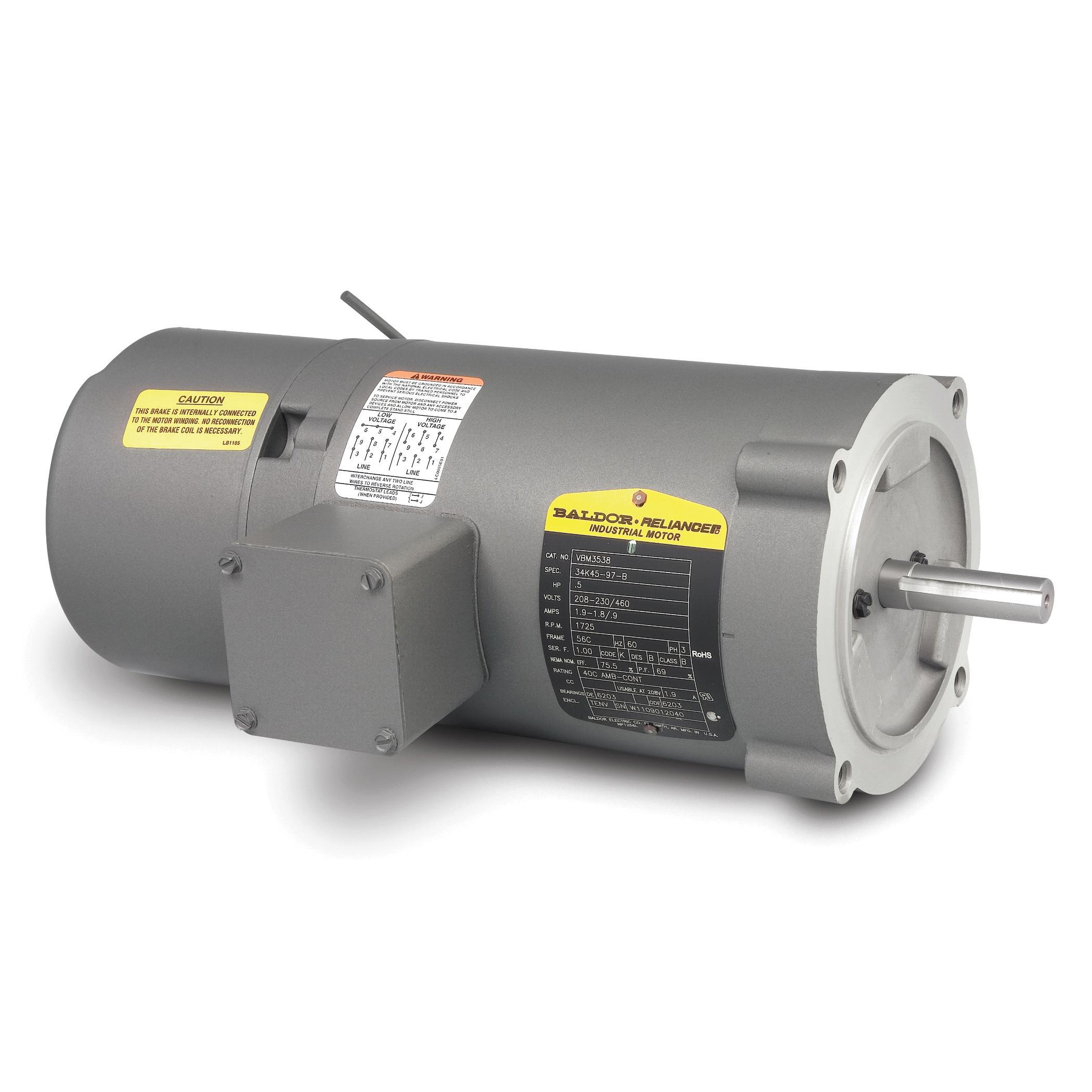

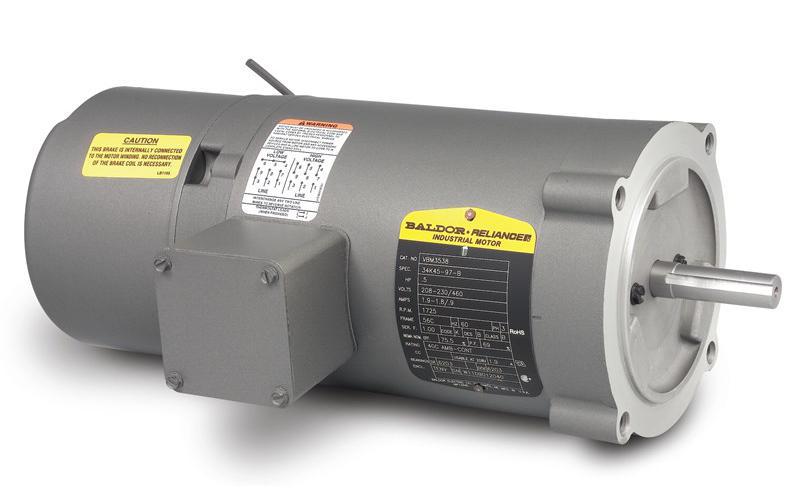

Baldor-Reliance VBM3542-5
Baldor-Reliance VBM3542-5 Continuous Duty Type 3516M AC Motor, Totally Enclosed Not Ventilated Enclosure, 0.75 hp, 575 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1750 rpm Speed, C-Face Footed Mount
- Manufacturer: ABB Baldor-Reliance
- Brand: Baldor-Reliance
- BSC Item#: VBM3542-5 BLDR
- MPN: VBM3542-5
- UPC: 781568115411
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: EACH
-
Login to see price
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance AC Motor, Continuous Duty Type 3516M, Series: Short, Application Type: General Purpose AC Motors, Brake Motors, Unit Handling Motors, Elevator Motors, Hoist Motors, 0.75 hp, 575 VAC, 1.9 A, 60 Hz, 3 ph, 1750 rpm, 1 Speed, Totally Enclosed Not Ventilated, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 2.24 ft-lb, C-Face Footed Mount, 40 deg C, Insulation Class: Class F, Steel, 15.26 in L x 10.25 in W
- Low profile F-3 conduit box
- Compact design
- Fast action DC brake with integral rectifier
- Suitable for mounting in any configuration
- Inverter ready
Catalog
| Standard/Approvals | : | CSA Certified|NEMA Premium®|UR Listed |
| Application | : | Conveyors, Baggage Handling, Packaging Equipment and Door Operators |
