Baldor-Reliance UCC7100 UCC7100 BLDR
Send NoImagePrint
  1. pin-int

Baldor-Reliance
UCC7100

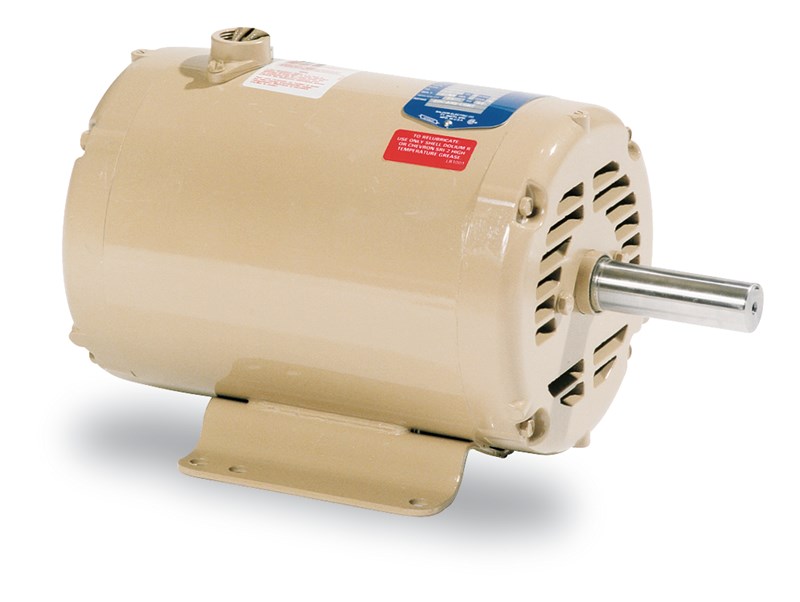

Baldor-Reliance UCC7100 AC Motor, 7-1/2 hp, 10 hp, 230 VAC, 60 Hz, 1 ph, 184TZ Frame, 3450 rpm, F1 Foot Mount, Open Enclosure

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: UCC7100 BLDR
  • MPN: UCC7100
  • UPC: 781568122372
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor, Switchless Motor Special Features, 7-1/2 hp, 10 hp, 230 VAC, 28/39 A, 60 Hz, 1 ph Phase, 3450 rpm, 1 Speed, Open, 184TZ Frame, 1-1/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 15.3 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 16.88 in L

  • Without drip cover
  • Without auxiliary box
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_063f59a1c53cb5db8b0ff07e45adcd9af78ab1fee49e618011b4b74d9e87caac.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL Recognized
Application      :      Vane Axial Fan Crop Dryer
