Baldor-Reliance
D1153

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

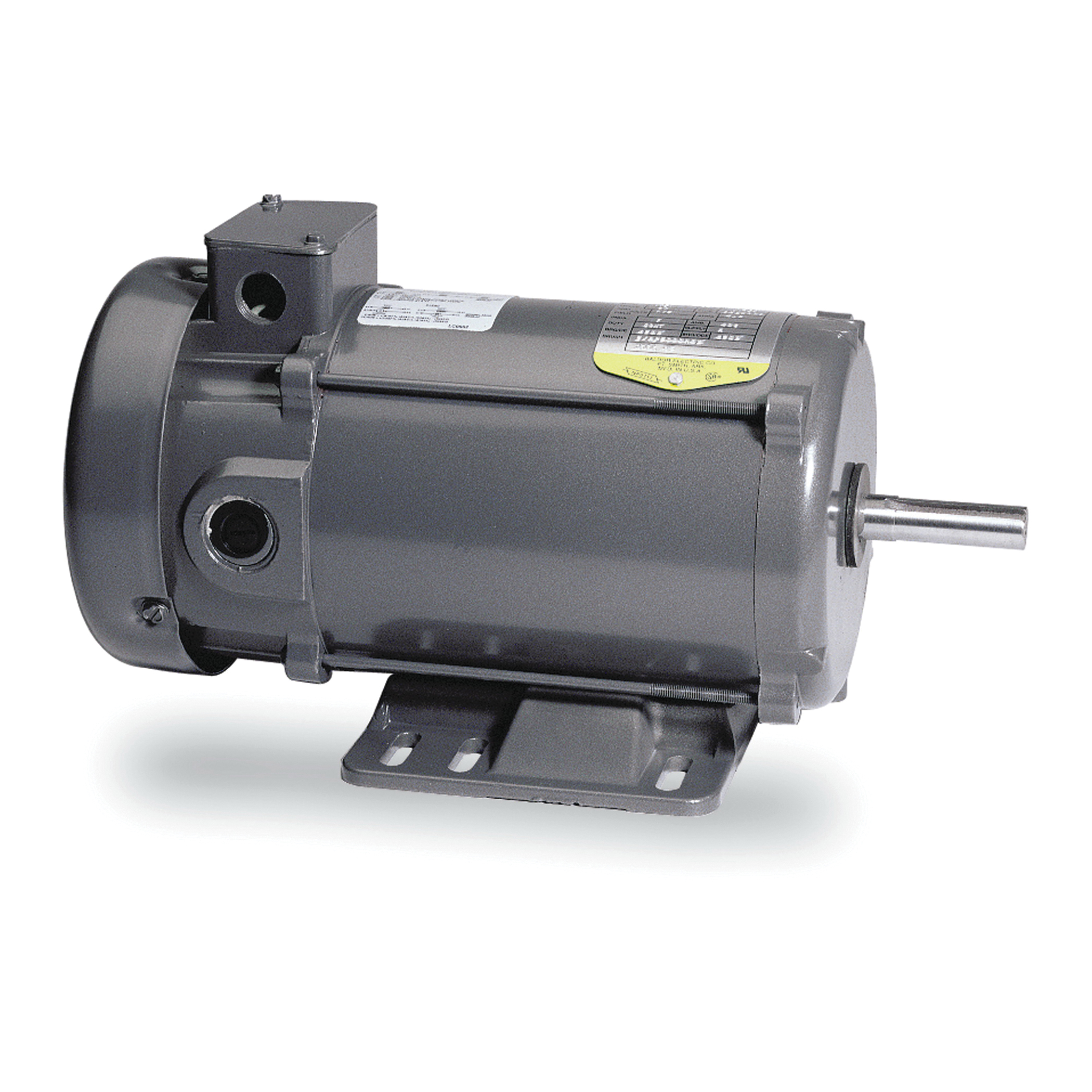

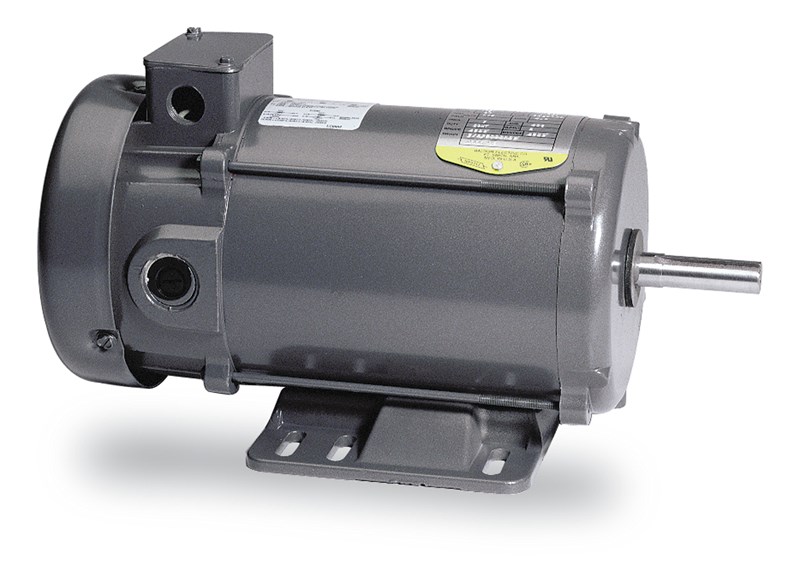

Baldor-Reliance DC Motor, Continuous/Marine Duty Type 3428D, General Purpose DC Motors, Hoist Motors Application, 0.75 hp Power, 115 VDC, 6.6 A, 1750 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 3.38 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 14.04 in L x 6.75 in W Dimensions

• 20% compound wound
• Weather proof, VPI insulation meets IEEE 45 specifications
• Suitable for mounting in any position
• Powered from generators or batteries
• Easy access brushes

• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_D1153_Technical_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e43f7614c3ef7ed816aff85f229a650ca1fbad12f8a1f4af30fcf146b9003502.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
