Baldor-Reliance
IDVSM2333T

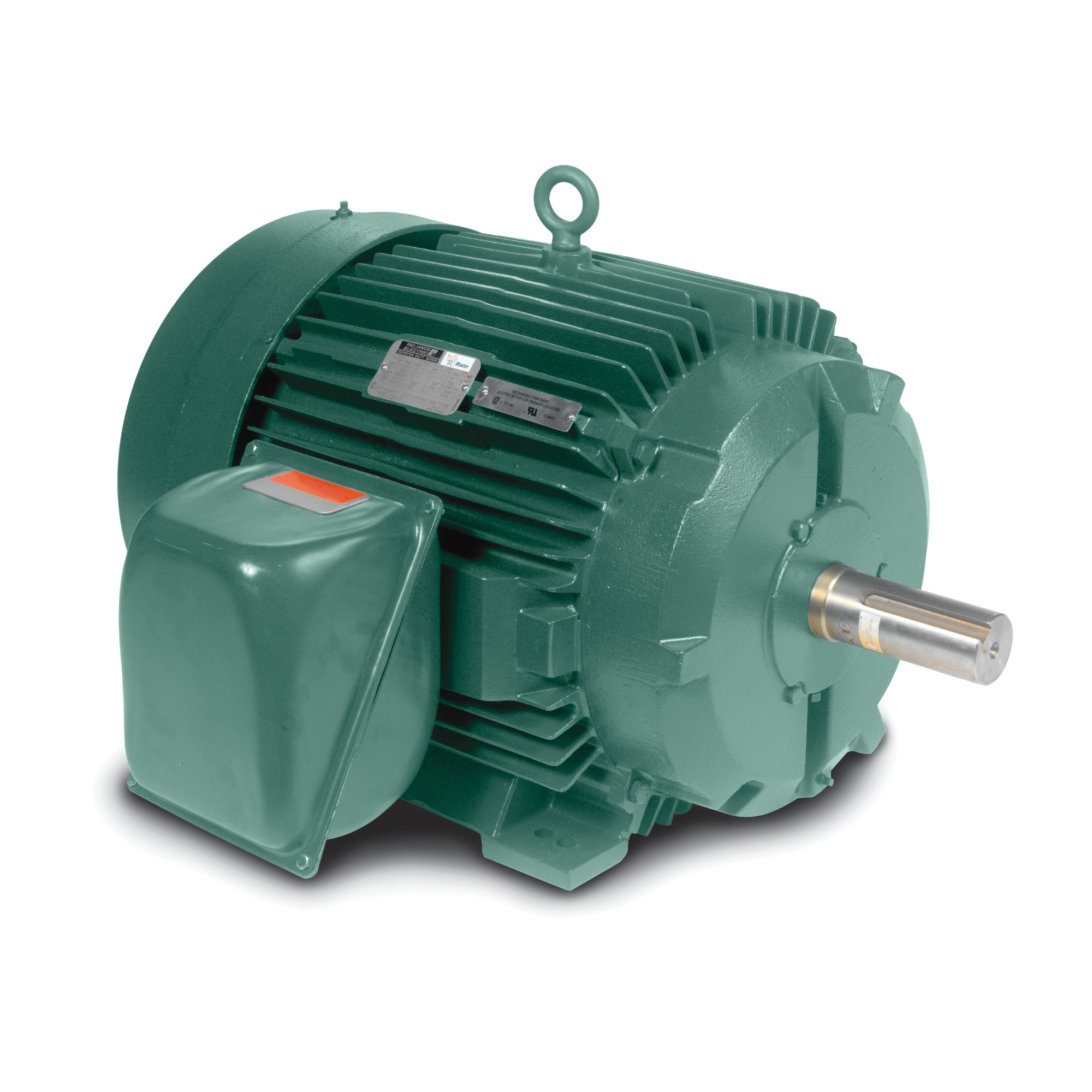

Baldor-Reliance variable speed motors are specifically designed for variable speed control. The platform provides constant torque across the entire operating speed range in traditional NEMA and IEC designs or a power dense laminated steel square frame. Controlling a motor with variable frequency power has never been easier when using a Baldor-Reliance variable speed motor.

Baldor-Reliance AC Variable Speed Master Motor, Continuous Duty Type 0944M, General Purpose AC Motors, Hoist Motors Application, Vector (Inverter) Duty Motors Special Features, 15 hp, 208/230/460 VAC, 38/36.2/18.1 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 254TC Frame, 1-5/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 44.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Iron, 1000:1 Constant Torque Speed, 26.71 in L x 16.12 in W x 15.6 in H Dimensions

• TENV and TEFC, 1000:1 CT without blower
• Provisions for encoder mounting
• Three-thermostats, one per phase
• Standard NEMA frame sizes

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDVSM2333T_Full_Engineering_Drawing.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDVSM2333T_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDVSM2333T_Specification_Sheet.pdf
