Baldor-Reliance ECP83770T-4

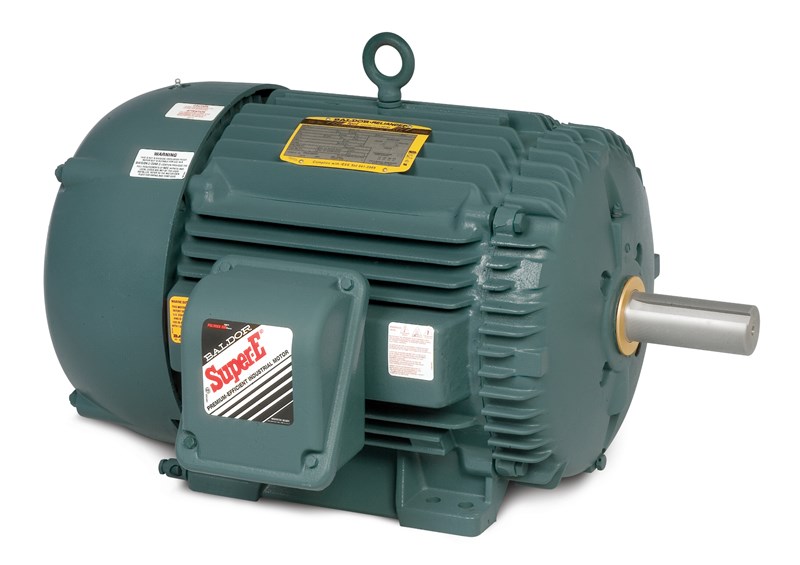

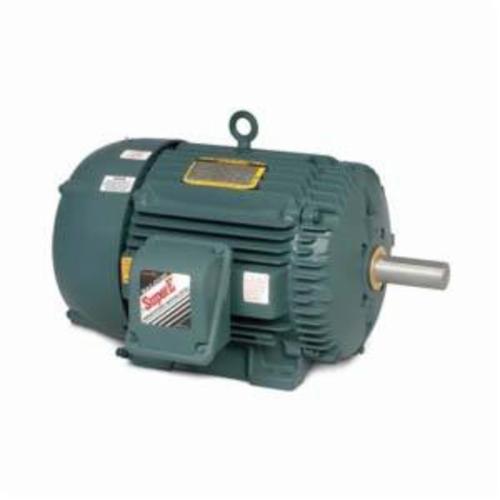

Baldor-Reliance Super-E® ECP83770T-4 Continuous Duty Severe Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 7-1/2 hp, 460 VAC, 60 Hz, 3 Phase, 213 Frame, 1765 rpm Speed, F-1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand: Baldor-Reliance
- BSC Item#: ECP83770T4 BLDR
- MPN: ECP83770T-4
- UPC: 781568210758
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: EACH
-
Login to see price
Baldor-Reliance severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe duty motors provide safe, long operating life, reliable performance and reduced energy consumption in the toughest applications.
Baldor-Reliance Super-E® AC Motor, Continuous Duty Severe Duty, 0740M Motors, Direct On Line Starting Method Special Features, 7-1/2 hp, 460 VAC, 9.5 A, 60 Hz Frequency, 3 ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 213 Frame, 1-3/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, 65.7 ft-lb Torque, F-1 Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 1.2 Constant Torque Speed, 19-1/2 in L Dimensions
- Meets and exceeds the requirements of IEEE standard 841-2009
- Patented PLS lubrication system for bearing longevity
- Inverter ready nameplate
- Meets IEEE 45 on nameplate
- IEEE 841 test report ships with the motor
- Division 2, class I, groups A, B, C, D markings on nameplate
Catalog
| Standard/Approvals | : | ARRA Compliant|Buy American Act Compliant|CSA Certified|EEV Certified|RoHS Compliant|UR Recognized |
| Application | : | Chemical, Oil and Gas, Pulp and Paper, Forest Products, Metals and Foundries, Cement, Aggregate and Ground Mining, Food Processing and Power Generation |
