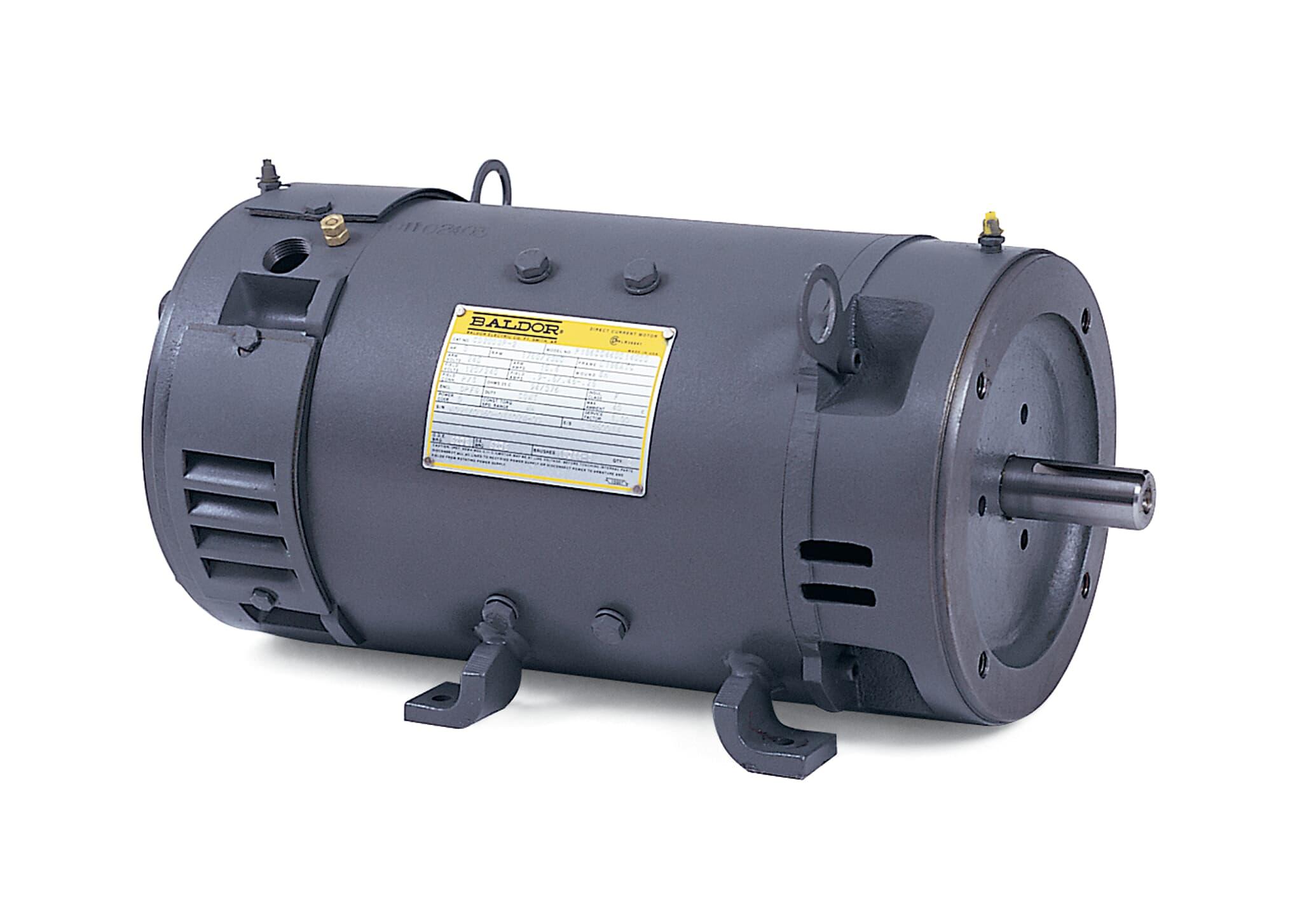

Baldor-Reliance
D5015P

Available in round frame and unique laminated square frames, Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes, and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance limiting hot spots.

Baldor-Reliance DC Motor, Rigid Base Self Ventilated, Shunt Wound SCR Drive Special Features, 15 hp, 500 VDC, 25.2 A, 1750/2300 rpm, DPFG, 258AT Frame, 1.624 in Dia Shaft, Reversible, Service Factor: 1, F-1 Mount, 40 deg C, Insulation Class: Class F, Steel, 29.84 in L

• High dielectric stability
• Low moment of inertia armature for fast response
• Includes thermostat on interpole
• Constant pressure brush springs and longer brushes for reduced maintenance
• Includes grease fittings and reliefs for bearing maintenance
• Tachometer adaptable
