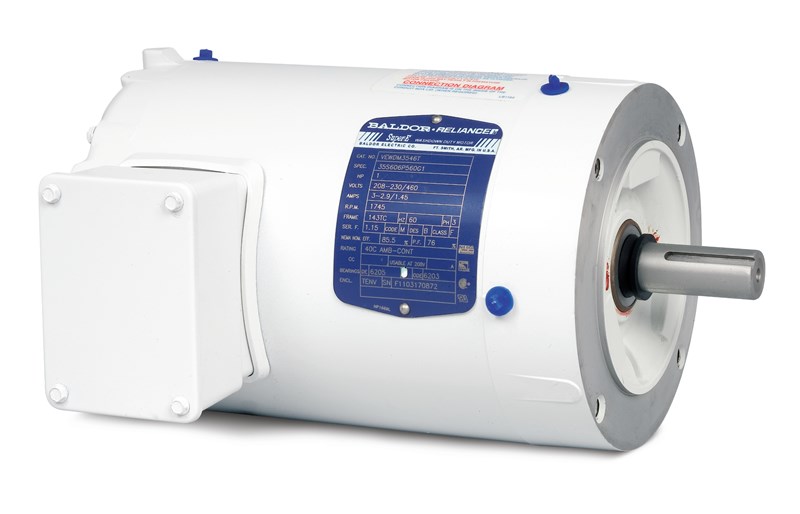

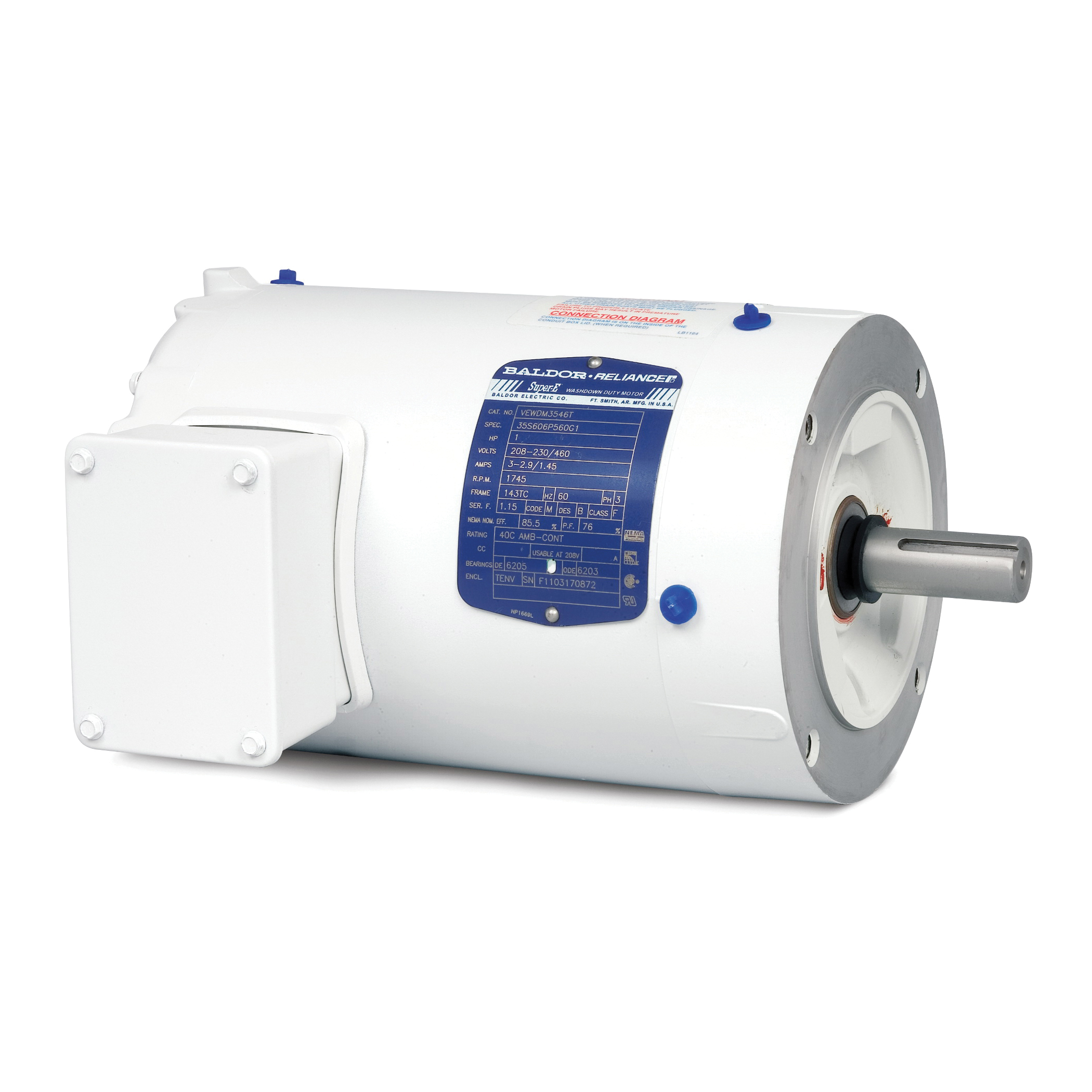

Baldor-Reliance
VEWDM3546

Baldor-Reliance washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, Baldor offers motors from painted to stainless steel to meet the washdown needs of our customers.

Baldor-Reliance AC Motor, Continuous Duty Type 3524M, Application Type: Sewage and Wastewater Pump Motors, Special Features: Washdown Duty Motors, 1 hp, 208/230/460 VAC, 3/2.9/1.5 A, 60 Hz, 3 ph, 1745 rpm, 1 Speed, TENV, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 3.03 ft-lb, C-Face Footless Mount, 40 deg C, Insulation Class: Class F, Steel, 12.06 in L x 10.26 in W

• Neoprene gaskets
• Double sealed ball bearings
• Lip and V-ring seal on drive end
• Electrostatically applied epoxy finish
• Stainless steel shaft extension

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEWDM3546_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEWDM3546_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_db5c568fc035f3e3c26990a9045eeaaa4d7d6aa9c487fc88c8c4e8cd6a1bff94.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
