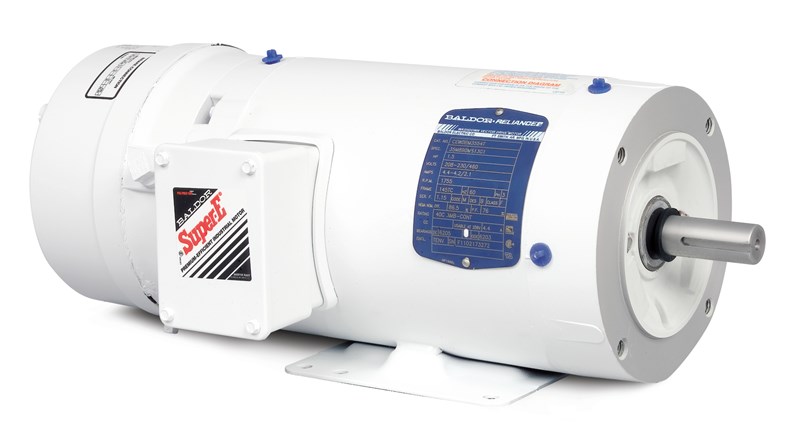

Baldor-Reliance
CEWDBM3538

Baldor-Reliance Super-E® AC Motor, C-Face, Brake Motor Application, Continuous Duty Motor, Washdown Duty Motor Special Features, 1/2 hp, 208/230/460 VAC, 0.9/1.8/1.9 A, 60 Hz Frequency, 1765 rpm Speed, 1 Speed, IP55 TENV Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.25 Service Factor, Sealed Bearing, 1.49 ft-lb Torque, F1 Foot Mounting, 40 deg C, Insulation Class: Class F, Steel, 15.31 in L Dimensions

• Class F insulated motor with 1.15 service factor or higher that operates within class "B" temperature limits at rated horsepower
• Standard NEMA BA dimension
• 300 Series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates
• Neoprene gaskets
• Power off manual release
• Resets automatically
• Motors have NEMA Premium® efficiency and are inverter ready
• 230/460 VAC brakes are connected in conduit box allowing for separate connection when used with an inverter
• Without drip cover
• 0.5 hp at 60 Hz horsepower rating
• Without auxiliary box

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0b88e160f171b267738b8d68a4b23171a1ed238e0b5321b70056795aaad322e1.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873496549.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
