Baldor-Reliance
KENM3535

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

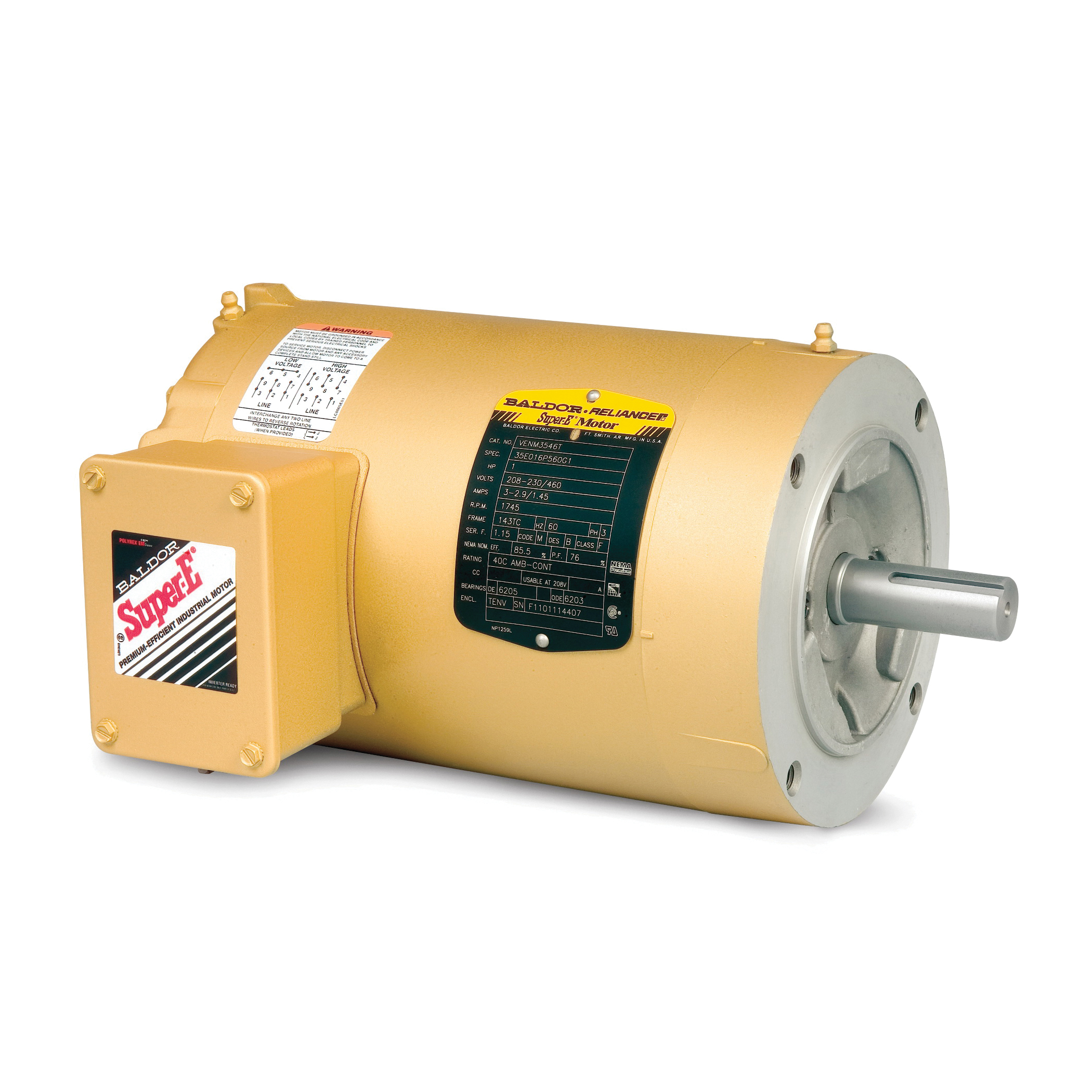

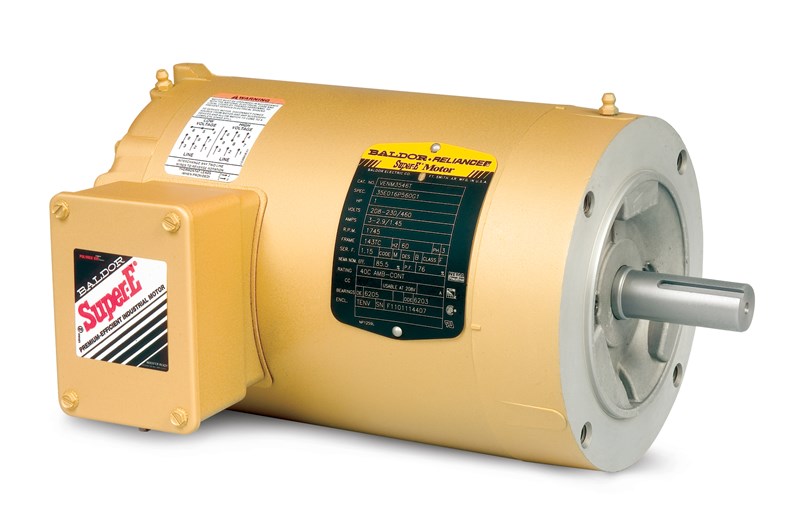

Baldor-Reliance Super-E® AC Motor, Type 3520M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 0.33 hp, 208/230/460 VAC, 1.2/1.2/0.6 A, 60 Hz Frequency, 3 ph, 1150 rpm Speed, 1 Speed, TENV Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 1.49 ft-lb Torque, C-Face Footless Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 11.06 in L x 10.26 in W Dimensions

• Footless design reduces weight and improves safety
• Locked DE bearing to allow mounting in any configuration
• 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
• Suitable for inverter use per NEMA MG1 part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_KENM3535_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_KENM3535_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7198f2486369b244afff9b1ac81663871837a0db5871af34e856af8c9bddfa35.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
