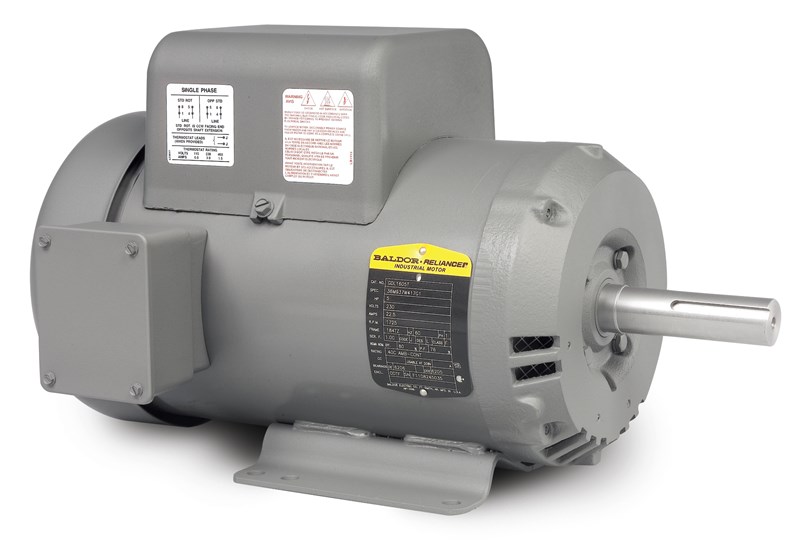

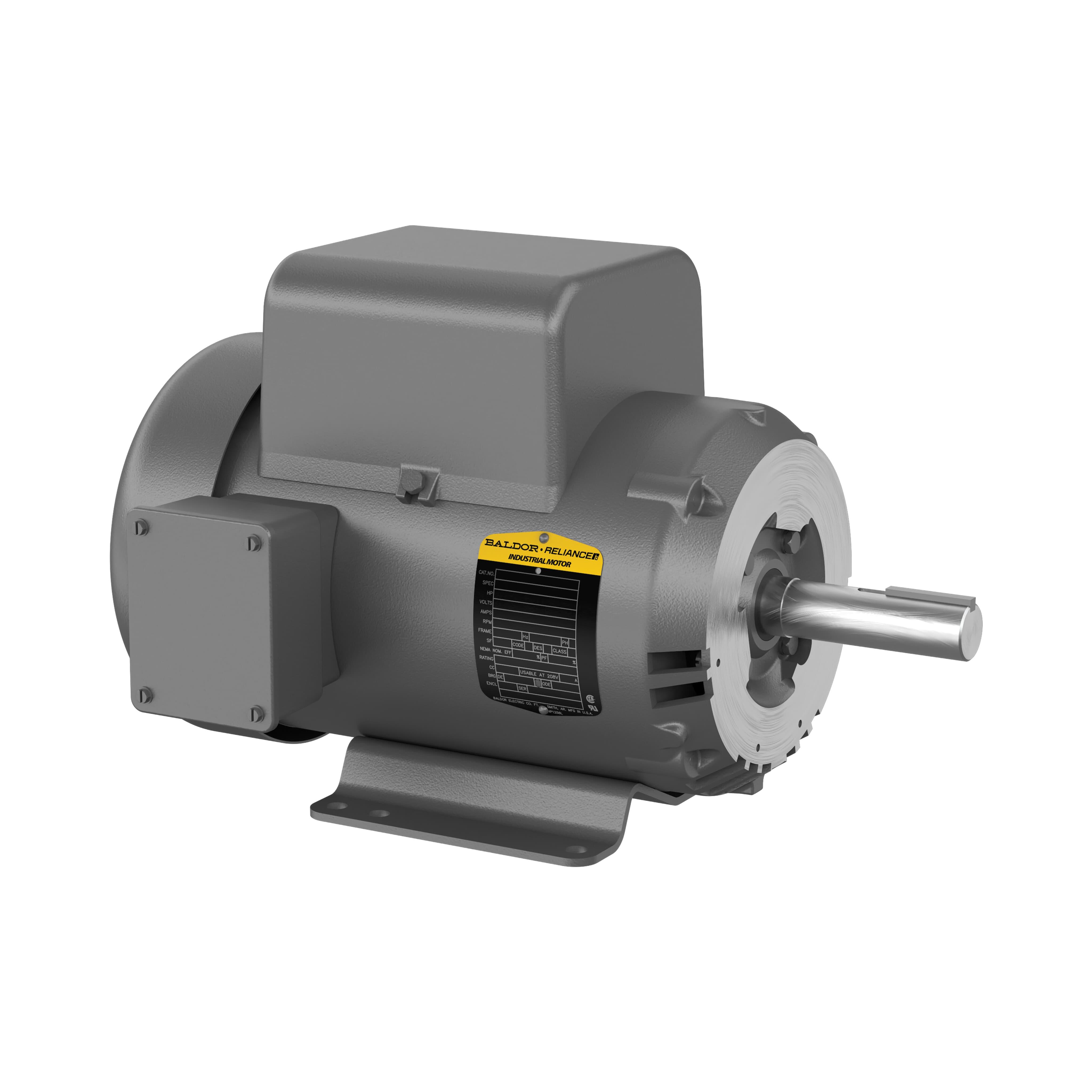

Baldor-Reliance
GDL1605T

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance Centrifugal Fan AC Motor, Continuous Duty Direct On Line Type 3646LC, Farm Duty Motors, General Purpose AC Motors, Grain Dryer Motors Application, 5 hp, 230 VAC, 22.5 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Open Drip-Proof Tandem Fan Enclosure, 184TZ Frame, 1-1/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 15 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Steel, 19.11 in L x 11.63 in W x 11.07 in H Dimensions

• Shaft length 1 in longer than NEMA standard
• Lubed for life double sealed ball bearings
• Lip seal and V-ring slinger on drive end for increased moisture resistance
• Screens on ODP to protect against trash and debris

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_GDL1605T_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_GDL1605T_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d71f29e9c3cad308830e60b3b71756985f59a1366eddef65e418b738679dd0c9.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
