Baldor-Reliance

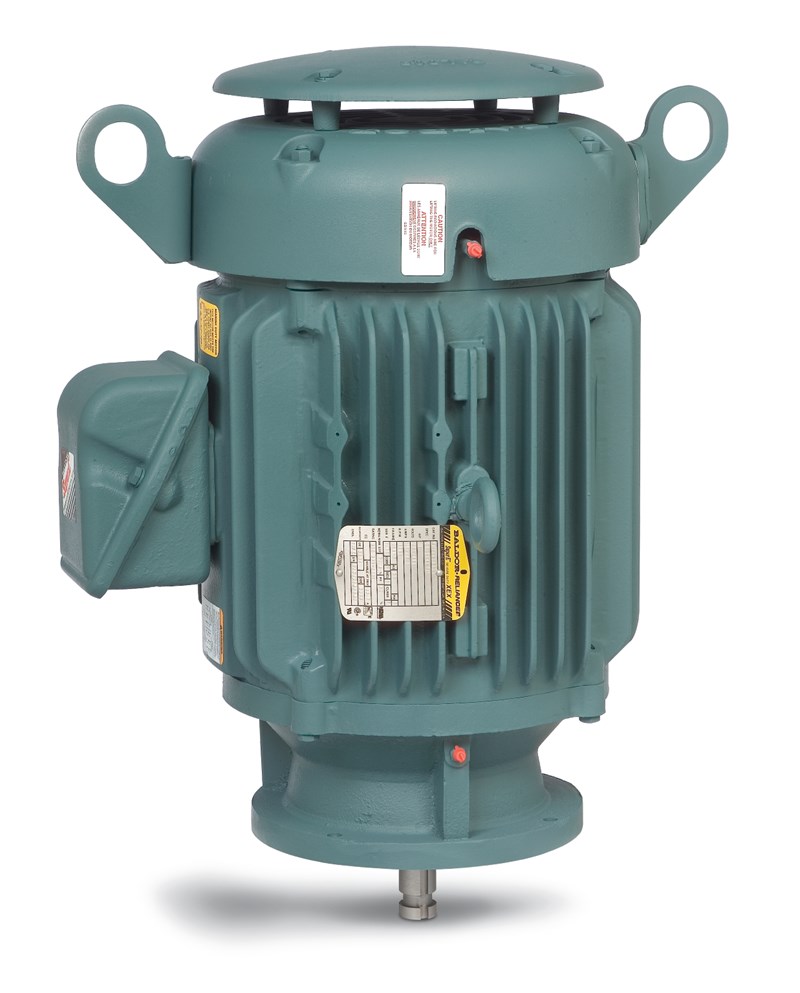

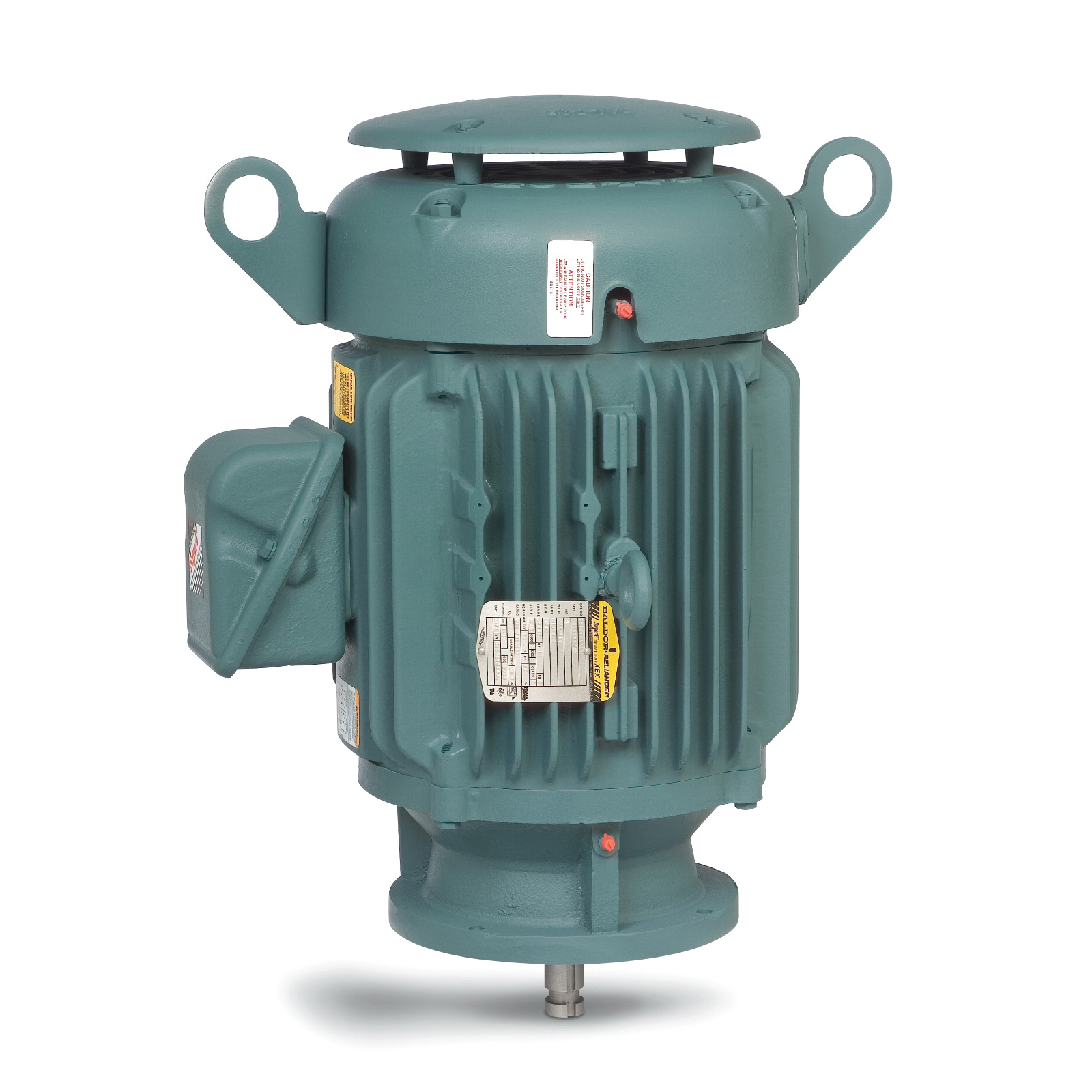

VHECP4103T

From industrial wastewater to fire suppression systems or commercial pools, Baldor-Reliance pump motors provide value by increasing reliability and reducing maintenance costs. Utilizing energy efficient designs, our pump motors meet NEMA Premium® efficiency and Inverter ready with wide variable torque speed ranges. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

Baldor-Reliance AC Motor, Continuous Duty Type 1046M, Sewage & Wastewater Pump Motors Application, 25 hp, 208/230/460 VAC, 64/62/31 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 284HP Frame, 1-1/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 74.2 ft-lb Torque, Footed/P-Base Vertical Mounting, 40 deg C, Insulation Class: Class F, Iron, 30.69 in L x 23.86 in W Dimensions

• Vertical lifting provisions for ease of installation
• Severe duty construction for harsh environments
• Corrosion resistant epoxy finish
• Stainless steel nameplates and seals

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VHECP4103T_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7828539ef7ba4e215f42f93801ad07d070ffcd6dd0a1bc58bed5d9dbc4191cdd.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
