Baldor-Reliance

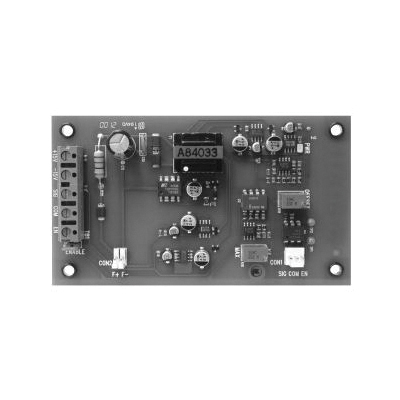

BC245

The BC245 is used with the BC254 full-wave 4-quadrant regenerative drive to isolate, amplify and condition DC voltage signals from any source (tach-generators, transducers, PLCs and potentiometers). It also provides an isolated input to control motor direction and an isolated power supply for transducer or potentiometer operation. All input connections are isolated from the AC line and motor wiring. The BC245 installs easily on the inside front cover and is wired with quick-connect terminals.

Baldor-Reliance Bipolar Signal Isolator, For Use With: BC254 Full-Wave 4-Quadrant Line Regenerative SCR Control DC Drives, 15 VDC Power Supply, 25 mA Maximum Load Current 5 k Ohm Potentiometer, 4.85 in L x 2.8 in H

• Provides isolation for PLC open collector or contact switching
• Used to power a transducer or to supply voltage for potentiometer operation
• Used to start and stop the control electronically with a contact closure
• Accepts a wide range of voltage input signals
• Power on LED
