Baldor-Reliance
BC200

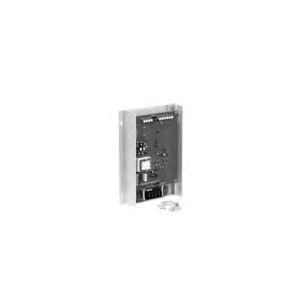

Baldor-Reliance BC200 Dual Voltage Line Regenerative SCR Control DC Drive, 115/230 VAC Input/90/180 VDC Armature, 16 A Input AC/11 A Output DC, 1/4 to 2 hp, 50:1, 50/100/200 VDC

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: BC200 BLDR
  • MPN: BC200
  • UPC: 781568128657
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

A chassis mount, adjustable speed DC drive for motors between 1/100 to 3/4 hp. The speed control is designed for 90 VDC PM and shunt motors. Speed range can be 50:1 along with load regulation involving 1%.

Baldor-Reliance SCR Control DC Drive, Dual Voltage Line Regenerative, 115/230 VAC Input/90/180 VDC Armature, 16 A Input AC/11 A Output DC, 1/4 to 2 hp, 50:1 Speed Rating, 1, 50/100/200 VDC Shunt Wound Voltage, 7.7 in Width, 10 in Height, LED, Chassis Mount

  • Adjustable accel, decel, current limit, IR comp, minimum and maximum speed
  • Current limit indicating LED
  • 5K speed potentiometer
  • Anti-demag circuit
  • Noise rejection circuit
  • Heatsink factory installed
  • Signal insolator
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_BC201_Installation_Sheet.pdf
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
Standard/Approvals      :      CE Certified|cUL/UL Listed
Application      :      Food and Beverage, Paper and Forest Products, Unit and Baggage Handling, Pump and Fluid Handling, Conveyors, Packaging Machinery, Pumps and Mixers
