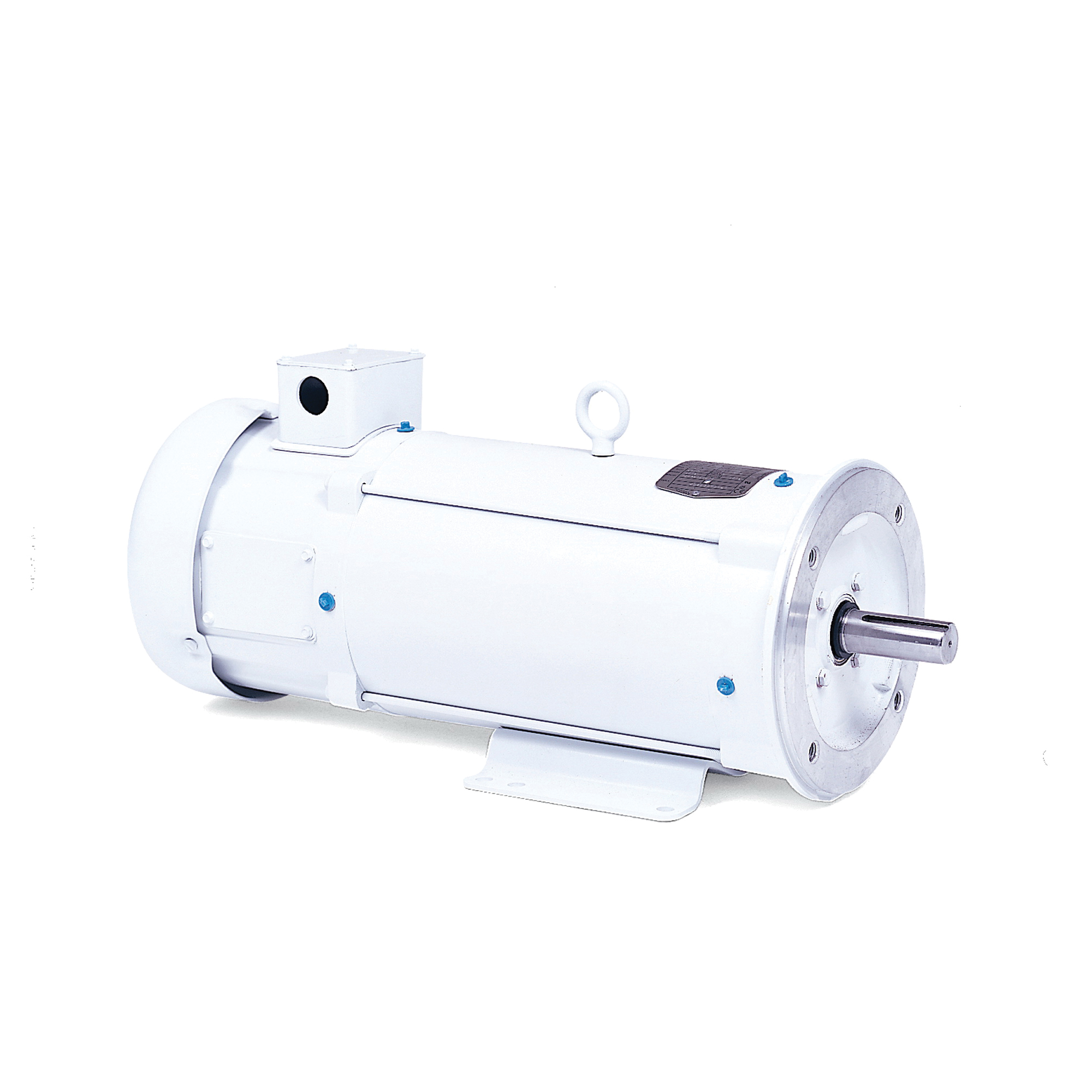

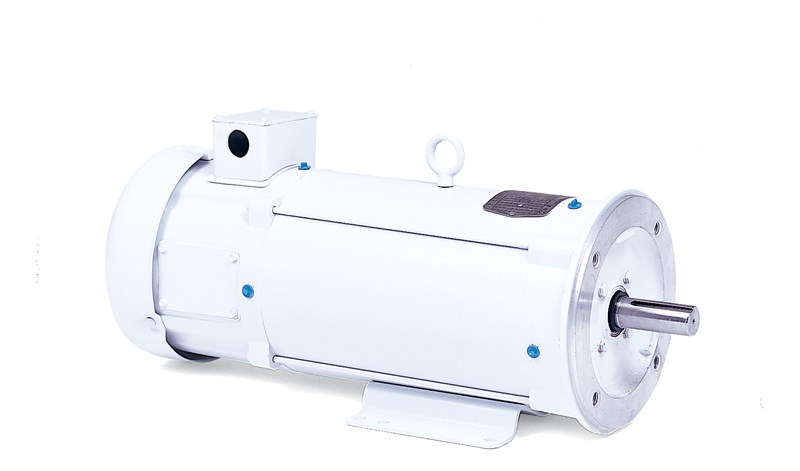

Baldor-Reliance
CDPWD3316

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

Baldor-Reliance DC Motor, Continuous Duty Type 3327P, General Purpose DC Motors Application, Washdown Duty Motors Special Features, 0.33 hp Power, 180 VDC, 1.6 A, 1750 rpm Speed, Totally Enclosed Not Ventilated Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 13.19 in L x 6.5 in W Dimensions

• Moisture sealant on bolt heads between frame and endplates
• Neoprene gasketed conduit box
• Forsheda® running contact V-ring slinger
• Tachometer adaptable
• Suitable for high pressure washdown

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDPWD3316_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDPWD3316_Technical_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_25f10a4de3b2488754cc8d646daa7969187672f0854db0afa0e00ce7a71bca88.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
