Baldor-Reliance
CDX7100

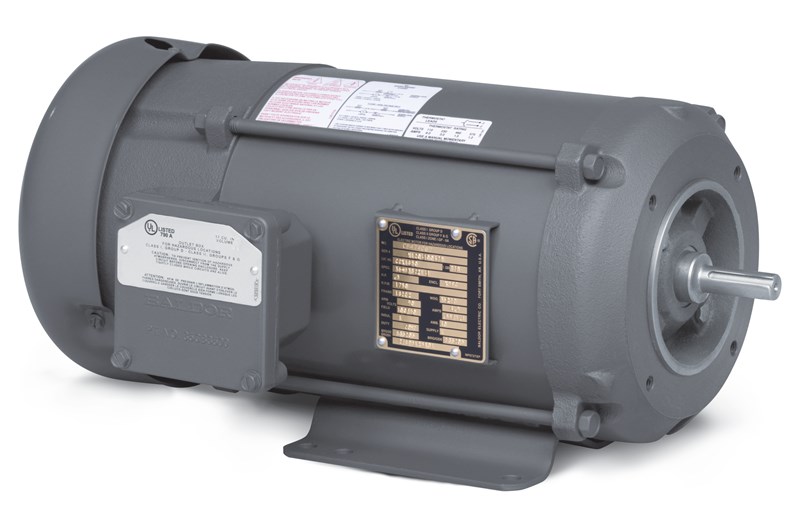

Baldor-Reliance CDX7100 C-Face DC Motor With Rigid Base Indicator, 1 hp Power Rating, 100/180/200 VDC, 0.25/0.5/5 A, 182C Frame, 1750 rpm Speed

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: CDX7100 BLDR
  • MPN: CDX7100
  • UPC: 781568124987
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Baldor-Reliance DC Motor, C-Face, SCR Drive Motor Application Type, Continuous Duty Motor, Shunt Wound Explosion Proof Motor Special Features, 1 hp, 100/180/200 VDC, 0.25/0.5/5 A, 1750 rpm, XPFC, 182C Frame, 7/8 in Shaft, Reversible, Service Factor: 1, BG6206 Sealed Ball Bearing, F-1 Mount, 40 deg C, Insulation Class: A, 18.68 in L

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • Normally closed thermostats on the field winding
  • 5 A armature, 0.25/0.5 A field current rating
  • 180 VDC armature, 100/200 VDC field voltage rating
  • Without drip cover
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d0b2c7e4131965d5b22e505a2e28c57c539efe818c21135f5a1a3cc29ba91272.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Recognized|UL Listed/CSA Certified for Division 1, Class I, Group D, Class II, Group F and G
Application      :      Conveyors, Printing, Textile Equipment and Machine Tools Applications
