Baldor-Reliance
ECP4410T-4

Baldor-Reliance severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe duty motors provide safe, long operating life, reliable performance and reduced energy consumption in the toughest applications.

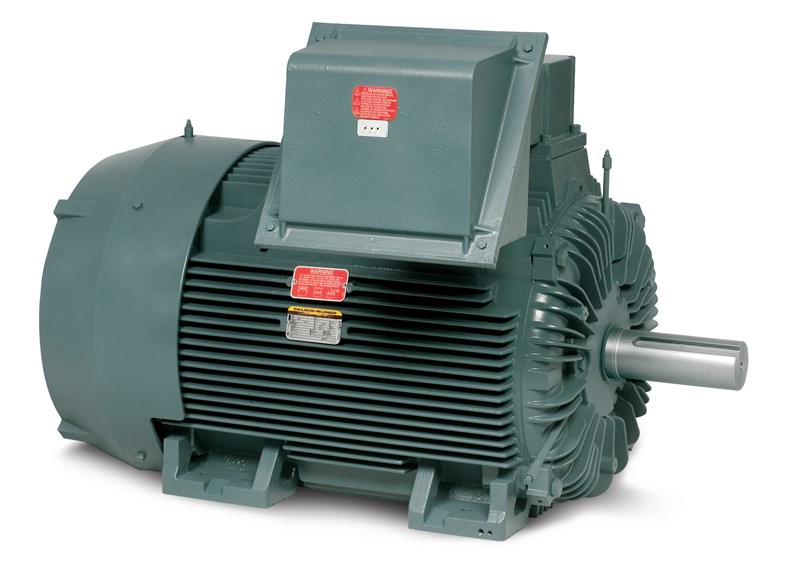

Baldor-Reliance AC Motor, Type A44076M Continuous Duty, General Purpose AC Motors Application, Severe Duty Motors Special Features, 125 hp, 460 VAC, 144 A, 60 Hz Frequency, 3 ph, 1785 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 444T Frame, 3-3/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 10:1 to 60:1 Constant Torque Speed, 44.75 in L x 24.24 in H Dimensions

• Robust cast iron construction
• Regreasable bearings all frames
• IP55, IP54 on 5000 frame and larger
• Embossed raised letter, 304 stainless steel nameplates
• Inverter ready nameplate
• Division 2, class I, groups A, B, C, D markings on nameplate

• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_ECP4410T_4_Technical_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_af4ec3d0faace2d24e91ba21a1d156b85a2c70d6200e2661b887c48b487ccac0.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
