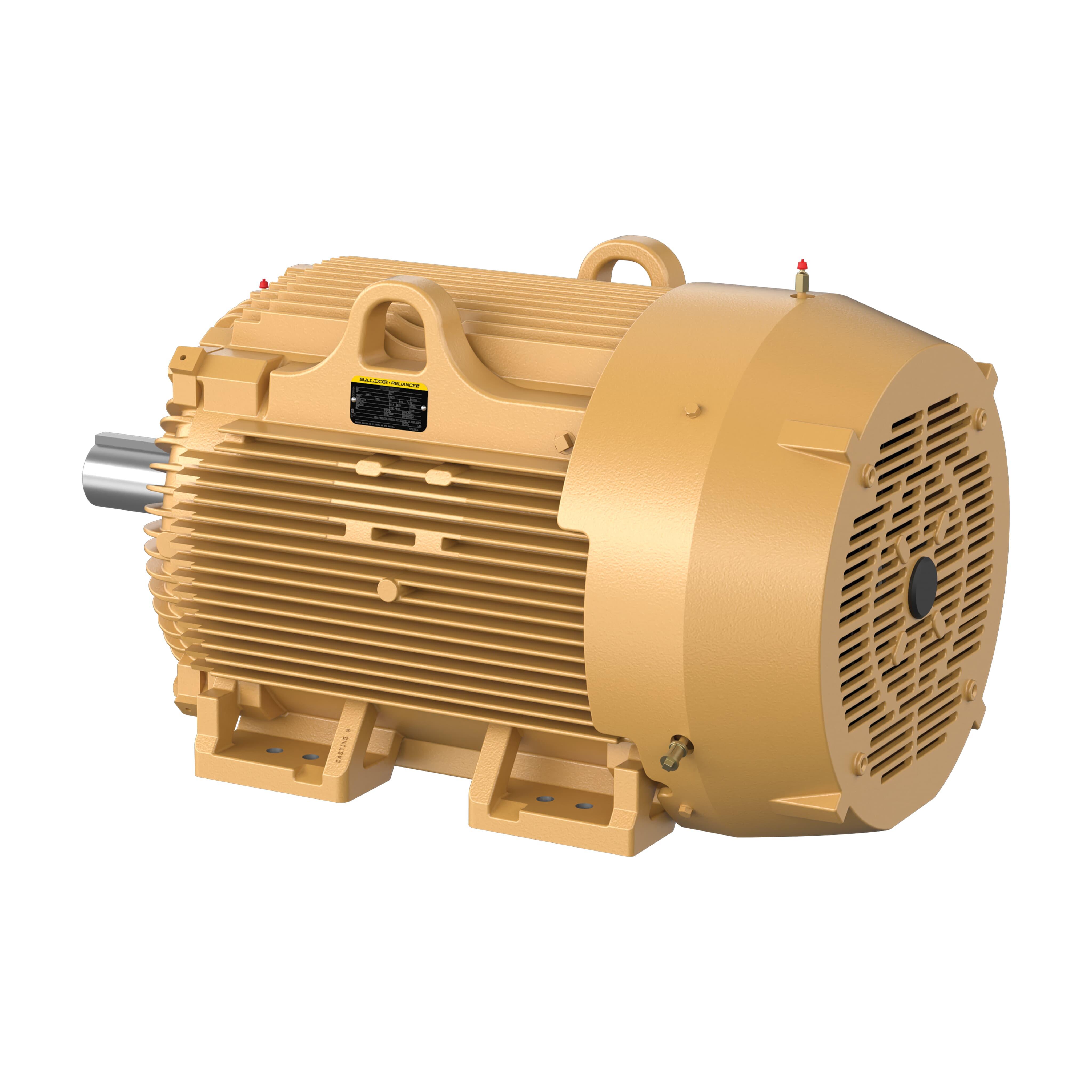

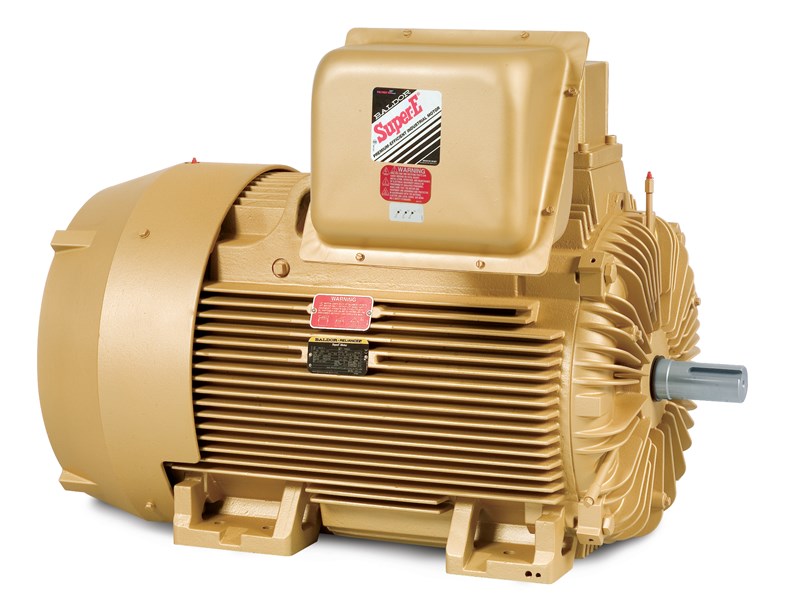

Baldor-Reliance
EM4410T-4

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance Super-E® AC Motor, Type A44076M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 125 hp, 460 VAC, 144 A, 60 Hz Frequency, 3 ph, 1785 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 444T Frame, 3-3/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 44.97 in L x 35.56 in W x 24.24 in H Dimensions

• Suitable for inverter use per NEMA MG1 part 31.4.4.2
• 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
• Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
• Optimized airflow design providing higher horse power in ok smaller package

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EM4410T_4_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EM4410T_4_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4a3a017959e68aed313ab63c5d317423f0cc9416fd27b8bc71e0462c1d40be2e.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
