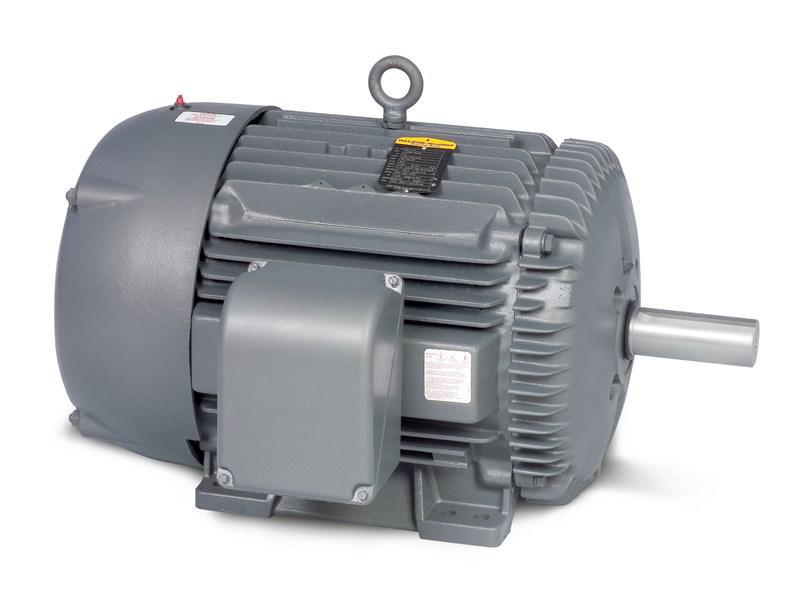

Baldor-Reliance M1711T
Baldor-Reliance M1711T Type 0944M Continuous Duty Definite Purpose AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 7-1/2 hp, 460 VAC, 60 Hz, 3 Phase, 256T Frame, 875/1760 rpm Speed, Foot Rigid Mount
- Manufacturer: ABB Baldor-Reliance
- Brand: Baldor-Reliance
- BSC Item#: M1711T BLDR
- MPN: M1711T
- UPC: 781568115824
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: EACH
-
Login to see price
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance Definite Purpose AC Motor, Type 0944M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Hoist Motors Application, 15 hp, 7-1/2 hp, 460 VAC, 16.8 A, 60 Hz Frequency, 3 ph, 875/1760 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 256T Frame, 1-5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 45 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 23.28 in L x 16.67 in W x 15.6 in H Dimensions
- Dual speed ratings
- High performance ball bearings
- Dynamically balanced rotors
- Heavy duty steel or cast iron frame
Catalog
| Standard/Approvals | : | ARRA Compliant|Buy American Act Compliant|CSA Certified|UR Recognized |
| Application | : | Fans, Blowers and Pumps |
