Baldor-Reliance
CDP3420-V24

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

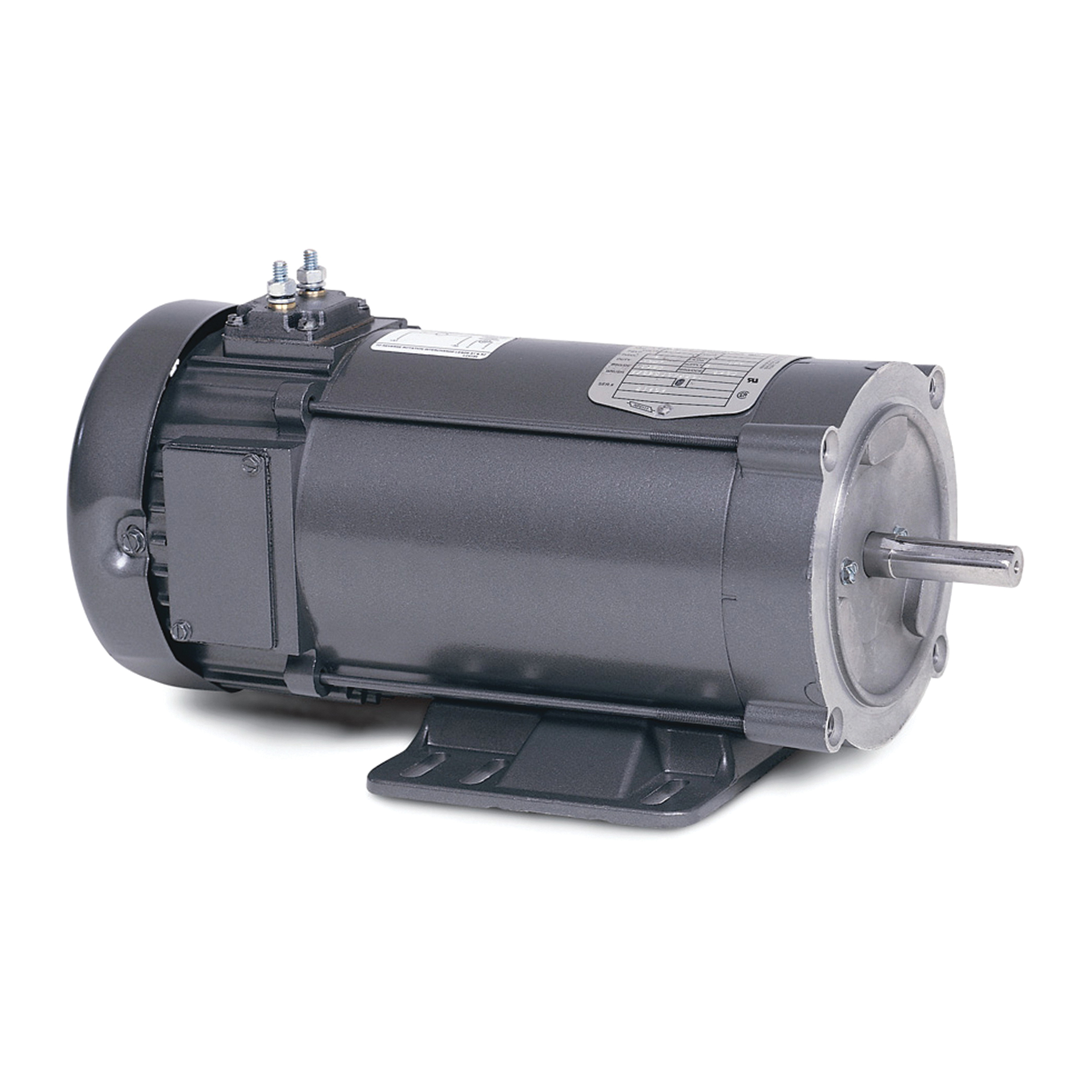

Baldor-Reliance DC Motor, Continuous Duty Type 3416P3416P, Fan & Blower Motors Application, Permanent Magnet DC Motors Special Features, 0.333 hp Power, 24 VDC, 13.6 A, 1800 rpm Speed, Totally Enclosed Not Ventilated Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 11.6 in L x 7.19 in W Dimensions

• Double sealed ball bearings
• Top-mounted terminal studs for power connection on ratings 40 A and up

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDP3420_V24_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDP3420_V24_Technical_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ad2135db8de2e731c1c6dbc673c462ac360d2ac5bc5296afae6effbe04f0531.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
