Baldor-Reliance

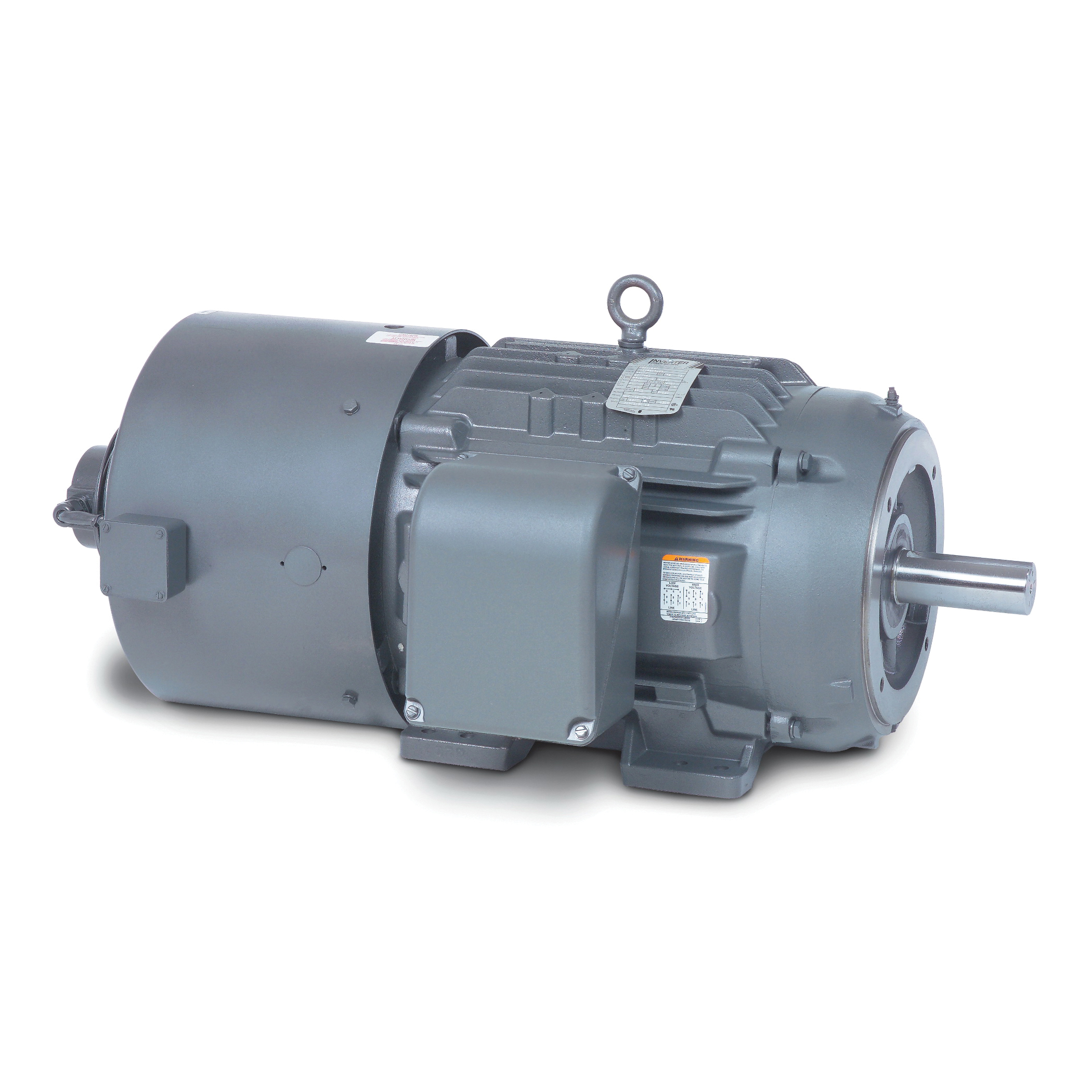

IDM3584T-5

Baldor-Reliance variable speed motors are specifically designed for variable speed control. The platform provides constant torque across the entire operating speed range in traditional NEMA and IEC designs or a power dense laminated steel square frame. Controlling a motor with variable frequency power has never been easier when using a Baldor-Reliance variable speed motor.

Baldor-Reliance AC Motor, Continuous Duty Type 0530M, General Purpose HVAC Motors, Compressor Motors, Fan & Blower Motors Application, Vector (Inverter) Duty Motors Special Features, 1.5 hp, 575 VAC, 1.7 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Blower Cooled Enclosure, 145TC Frame, 7/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, Iron, 1000:1 Constant Torque Speed, 19.02 in L x 10.38 in W x 7.48 in H Dimensions

• Suitable for sine wave operation
• In-line blower

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDM3584T_5_Full_Engineering_Drawing.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDM3584T_5_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_IDM3584T_5_Specification_Sheet.pdf
