Baldor-Reliance
VEUHM3538

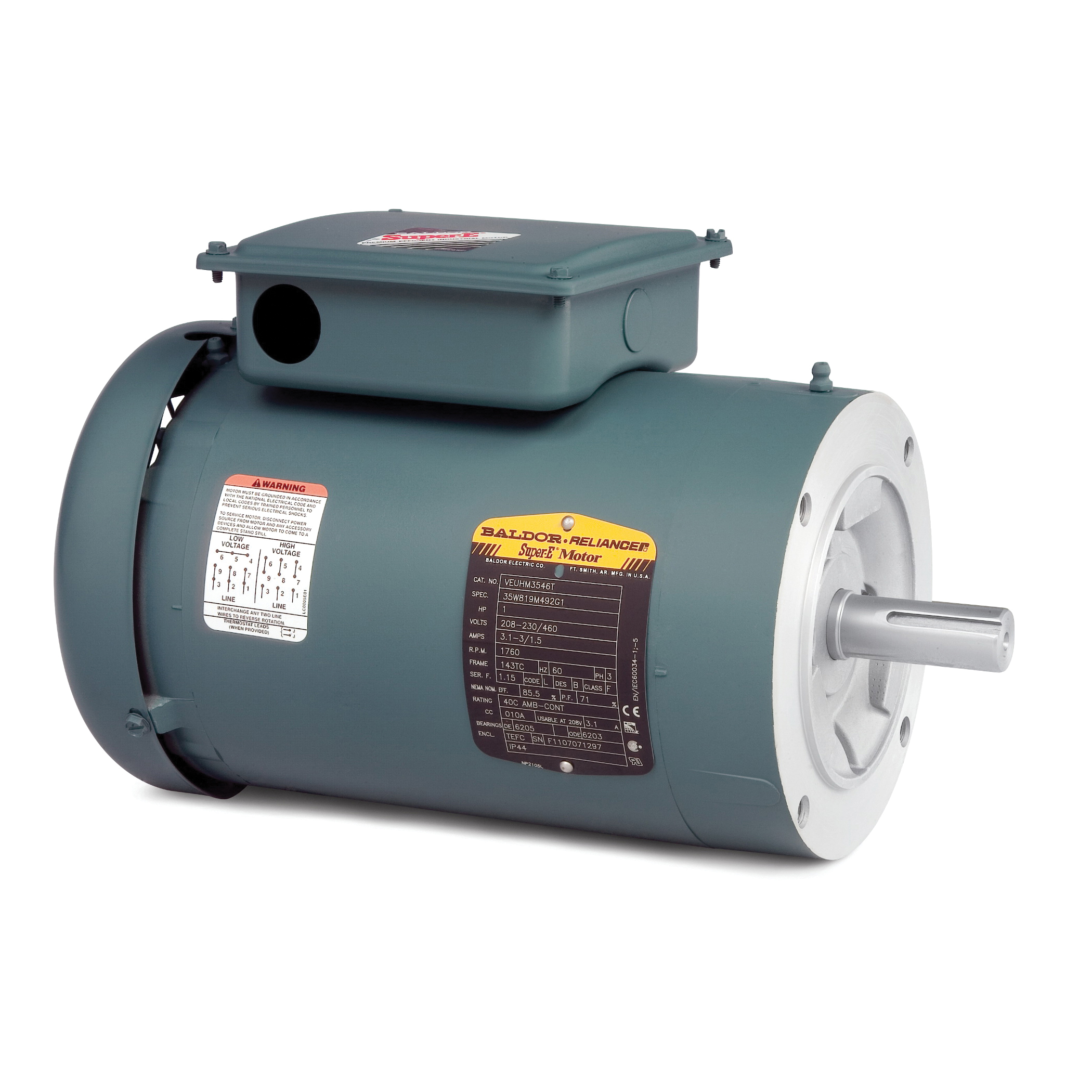

Baldor-Reliance VEUHM3538 Type 3514M Continuous Duty Direct On Line AC Motor, Totally Enclosed Fan Cooled Enclosure, 1/2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 1735 rpm Speed, C-Face Footless Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: VEUHM3538 BLDR
  • MPN: VEUHM3538
  • UPC: 781568502686
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance AC Motor, Type 3514M Continuous Duty Direct On Line, General Purpose AC Motors, Unit Handling Motors, Elevator Motors, Hoist Motors Application, 1/2 hp, 208/230/460 VAC, 1.7/1.6/0.8 A, 60 Hz Frequency, 3 ph, 1735 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 1.53 ft-lb Torque, C-Face Footless Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 13.23 in L Dimensions

  • Low profile F-3 conduit box
  • Multiple base mounting configurations
  • Color coded and numbered leads for ease of connectivity
  • Laser etched nameplate with highly legible font
  • Super-E® motors have NEMA Premium® efficiency
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEUHM3538_Line_Drawing.pdf
  • pdf Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEUHM3538_Technical_Drawing.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_282f2cc32bf16a06231342aa715cf55cc3024bc24c5472dac1b68b55a0a53d4e.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|CE Certified|CSA Certified|RoHS Compliant|UR Recognized
Application      :      Conveyors, Unit Handling, Baggage Handling, Packaging Equipment, Door Operators, Elevators and Hoists
