Baldor-Reliance

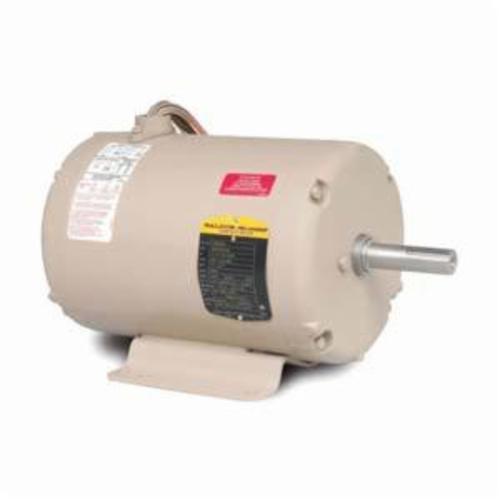

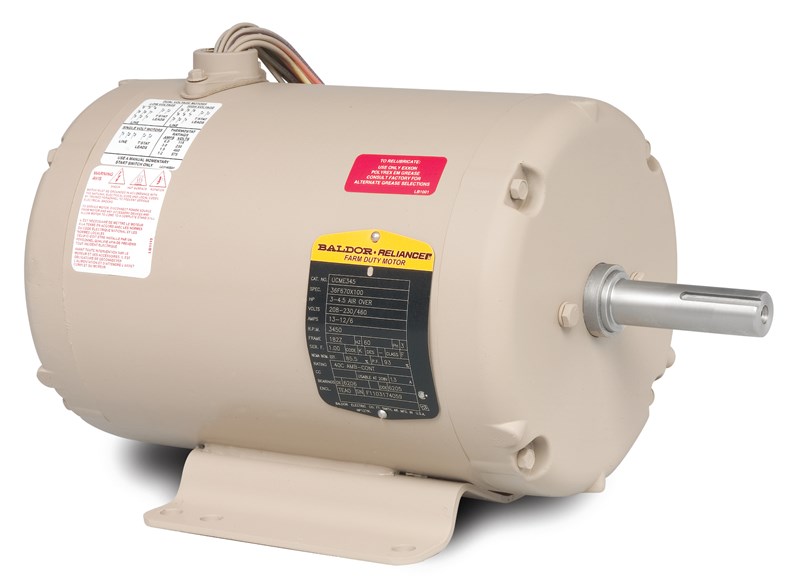

UCME3145

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance AC Motor, Continuous-Duty, Farm Duty Motors, Fan & Blower Motors Application, 3528M Motors, Direct On Line Starting Method Special Features, 4.5 hp, 3 hp, 208/230/460 VAC, 13/12/6 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, TENV Enclosure, 143TYZ Frame, 7/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 31.6 ft-lb Torque, F-1 Mounting, 40 to 176 deg C, Insulation Class: Class H, Steel, 13.37 in L Dimensions

• Shaft length 3/4 in longer than NEMA standard
• 1/4-20 tapped and keyed shaft
• Convenient lead location for ease of conduit connectivity
• Normally closed winding thermostats to protect against overheating
• Lubed for life double sealed ball bearings on TEAO motors
• Lip seal and V-ring slinger on DE for increased moisture resistance
