SKF®
BS2-2206-2RS/VT143

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with SKF® spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. SKF® invented this bearing type in 1919 and our range is the widest in the industry today - both open and sealed. Our assortment includes spherical roller bearings designed for many applications, including wind turbine main shafts, continuous casters, vibratory applications and high-speed applications, as well as bearings with solid oil, split bearings, SKF® ConCentra roller bearing units and for the harshest operating environments, our SKF® three-barrier solution.

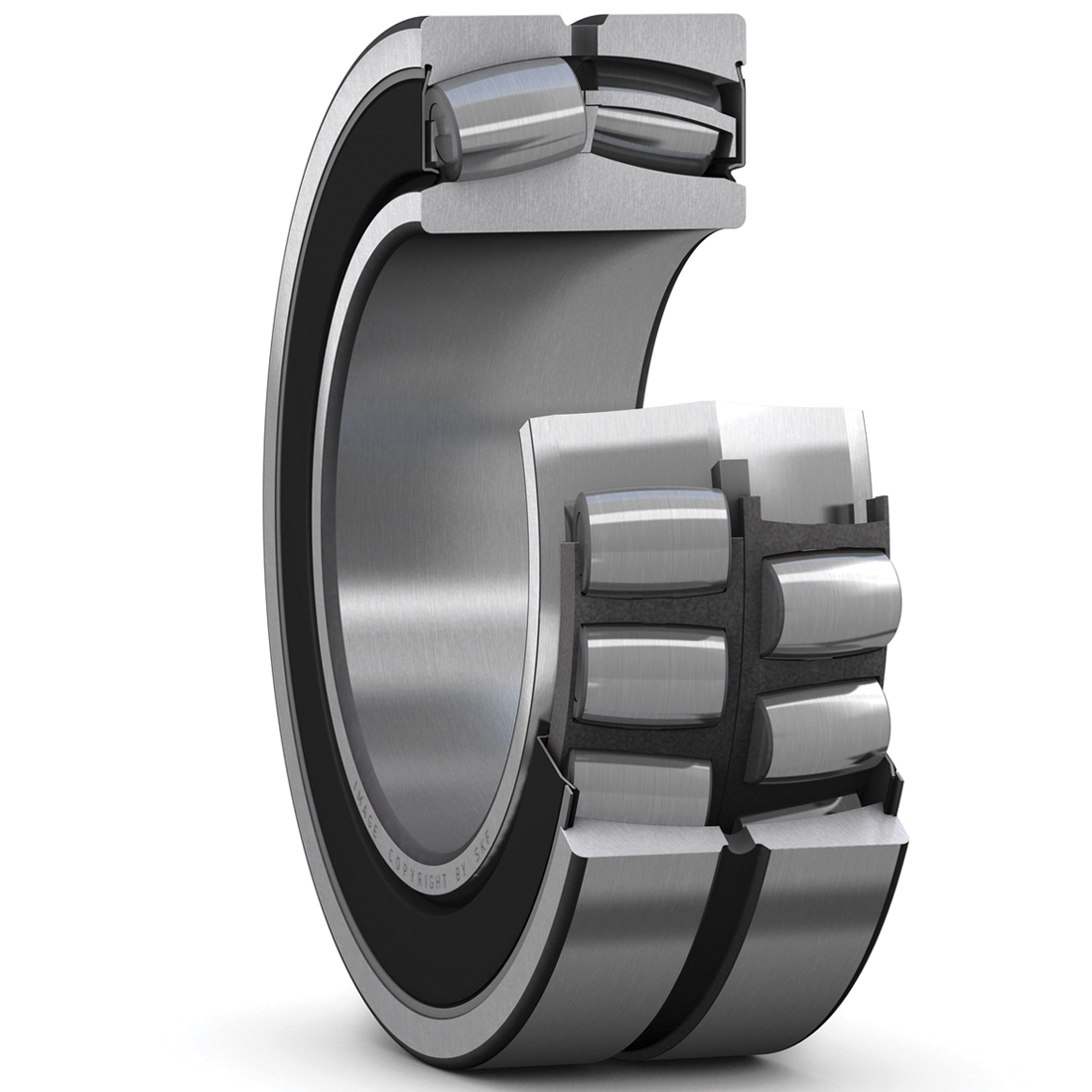

SKF® Spherical Roller Bearing, Cylindrical Bore, Series: BS2-2200 Series, 30 mm Bore Dia, 62 mm Outside Dia, 2 Rows, 25 mm Width, Double Seal Closure, 66.1 kN Dynamic/60 kN Static, Steel Bearing, NBR Seal, Steel Cage, 5200 rpm Limiting Maximum, -40 to 195 deg F, Uncoated

• Accommodate misalignment - spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings
• High load carrying capacity - spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions
• Long service life - the rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set, the symmetrical rollers self-adjust providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends
• Low friction - self-guiding rollers keep friction and frictional heat at low levels, a floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position
• Robust - all SKF® spherical roller bearings contain strong window or prong-type cages

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_231500CAC3W33_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_BS222062RSVT143_Specification_Sheet.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_210N_Warranty.pdf
