Lovejoy®
69790400179

Lovejoy® 69790400179 Type FSPCR Shrouded Bolt Gear Coupling Spacer, 2.874 in Dia Bore, 4 in OD, 7 in OAL, 31500 in-lb Torque, 7500 rpm Balanced/5000 rpm Unbalanced Max

  • Manufacturer: Lovejoy
  • Brand: Lovejoy®
  • BSC Item#: 0697904001792 LOVJ
  • MPN: 69790400179
  • UPC: 697904001792
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: Call for Availability

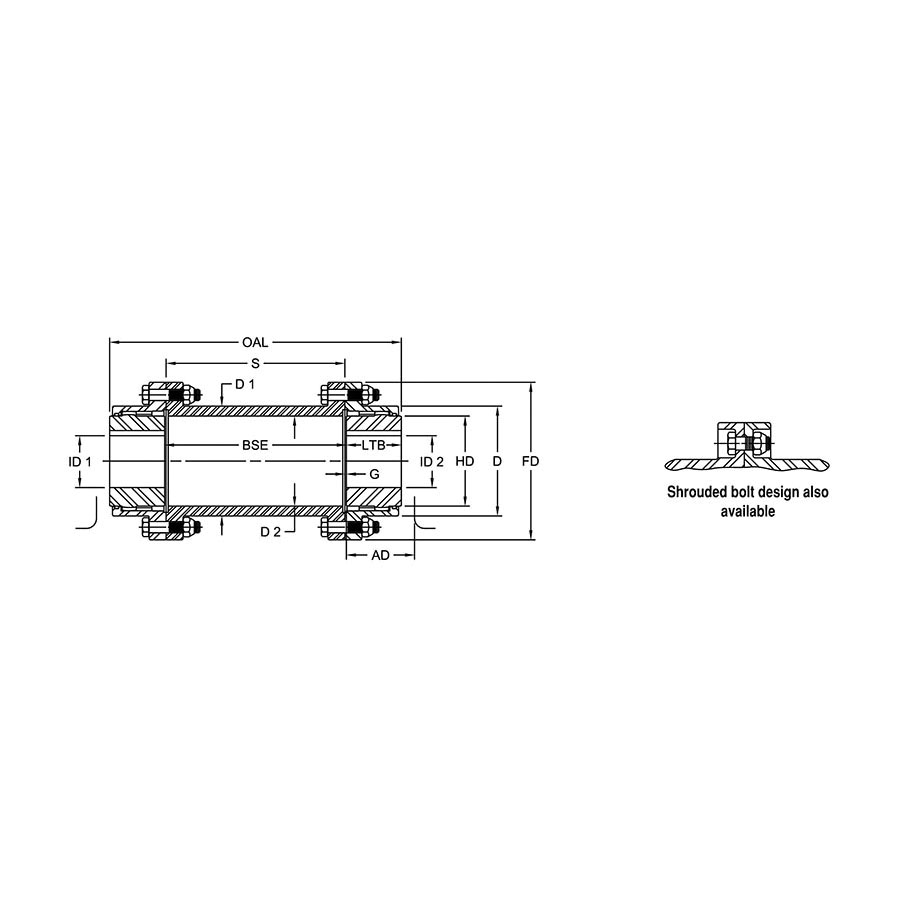

This drop-out spacer design allows for ease of maintenance without disturbing the equipment mountings. It has a lightweight construction to reduce the load on equipment bearings. The FSPCR Type coupling consists of two standard F Type flex hubs, two standard F Type sleeves, one FSPCR Type spacer and two accessory kits. This coupling is available in either exposed bolts or shrouded bolt design.

Lovejoy® Gear Coupling Spacer, Type FSPCR Shrouded Bolt, 2.874 in Bore, 4 in OD, 7 in Overall Length, 2.44 in Length Through Bore, 31500 in-lb Torque, 7500 rpm Balanced/5000 rpm Unbalanced Maximum, AISI 1045 Steel, Metallic

  • Patented Vari-Crown® tooth form for long life
  • Standard 20 deg pressure angle
  • Heat treated bolts for greater strength
  • Corrosion-resistant bolts and nuts for ease of maintenance
  • Provides parallel, angular misalignment and end float
  • Removal of spacer provides adequate space for the removal of either coupling half without moving the driver or driven units
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400400_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400179_Specification_Sheet.pdf
Standard/Approvals      :      AISI 1045|ECCN EAR99
