Lovejoy®
69790400758

Lovejoy® 69790400758 Type C Standard Universal Gear Coupling Hub With Keyway, 1-1/2 Coupling, 1-1/4 in Dia Bore, 4 in L Through Bore, 2.38 in Dia Hub, AISI 1045 Steel

Manufacturer: Lovejoy
Brand: Lovejoy®
BSC Item#: 0697904007589 LOVJ
MPN: 69790400758
UPC: 697904007589
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
FEATURES
Documents
ADDITIONAL INFO

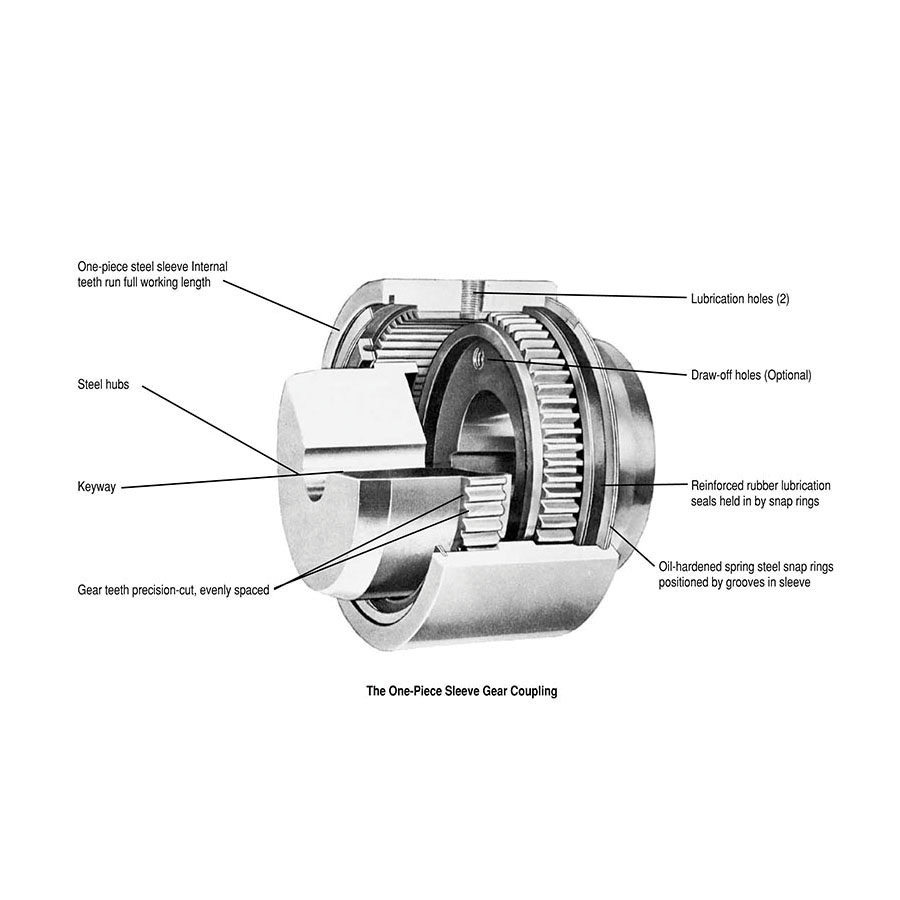

The C Type coupling consists of two flex hubs, one sleeve and one accessory kit consisting of seals and snap rings.

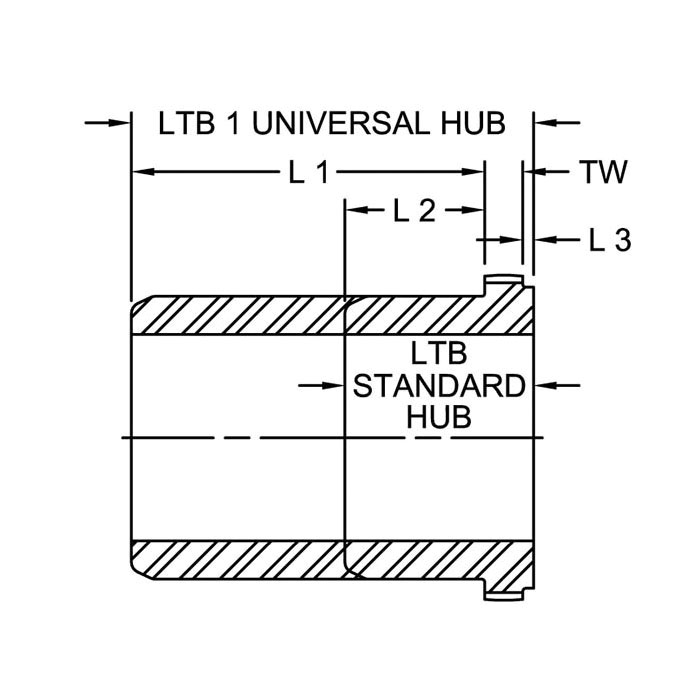

Lovejoy® Gear Coupling Hub, Type C Standard Universal, 1-1/2 Coupling, 1-1/4 in Bore, 2.38 in Diameter Hub, 1.81 in Hub Length, 5/16 in W x 5/32 in D Keyway, 5000 rpm Unbalanced/15000 rpm Balanced Maximum, 4 in Length Through Bore, AISI 1045 Steel, Metallic

Simple and inexpensive type of gear coupling
All steel sleeves and hubs
Reinforced rubber seals with snap rings to hold lubricant in place

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400400_Catalog.pdf
Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400029_Manual.pdf
Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400758_Specification_Sheet.pdf
