Lovejoy®
69790400881

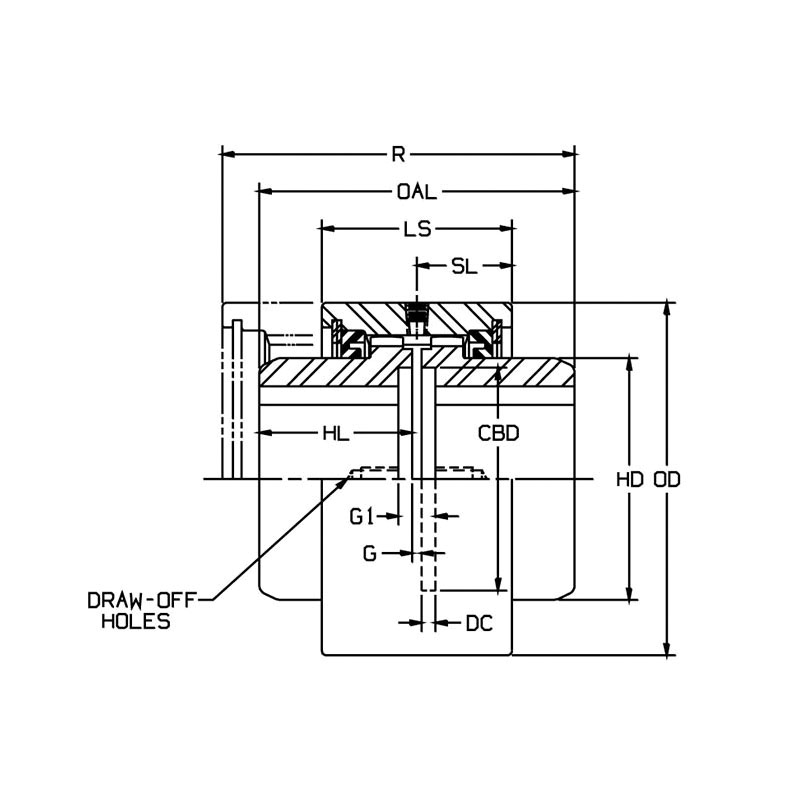

Lovejoy® Coupling Sleeve, Type C Continuous Universal, 7 in Coupling, 14 in OD, 7-1/2 in Length, For Use With: Sier-Bath® Flex-Flex Gear Couplings, Steel

• Simple and inexpensive all steel type of gear coupling constructed with a single sleeve and two hubs
• Comparatively simple installation
• Precision cut 20 deg pressure angle gear teeth with minimum backlash
• Angular misalignment of 1/2 deg per gear mesh (flex-plane)
• Sizes 7/8 through 12 in, to accommodate bore sizes up to and including 12-1/2 in
• Interference fit (standard)
• Load capacities range from 2500 in-lb up to 2520000 in-lb
• Patented and tested BUNA N seal design with reinforced washers bonded to the inside edges which positively retain lubricant and seal the interior from outside contaminants
• Reinforced rubber seals with snap rings to hold in lubricant
• Two snap rings made of hardened spring steel which securely hold the coupling together, are easy to install or remove, yet withstand 100000 lb of end thrust
