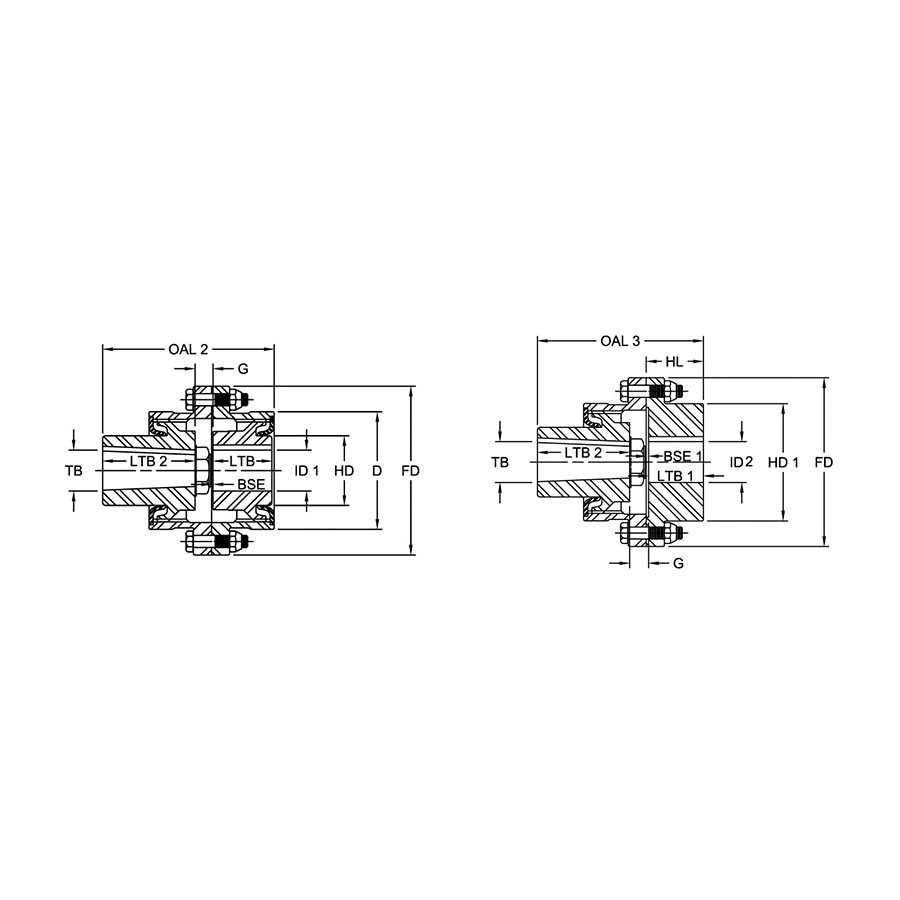

The FLAMM Type coupling consists of one FLAMM Mill Type hub, one standard FLA Type flex hub, two standard FLA Type flex sleeves and one accessory kit. This coupling is supplied with exposed bolts as standard, with shrouded bolts are available upon request through size 5-1/2. The FLAMM Type Mill hub accommodates AISE Mill Motor frame sizes (with the two sleeves and second hub being standard FLA Type).

Lovejoy® Mill Motor Gear Coupling Hub, Type FLAMM Finished Bore, 2-1/2 Coupling, 2.498 to 2.499 in Bore, 3.63 in Diameter Hub, 1/2 in W x 1/4 in D Keyway, 4400 rpm Unbalanced/6600 rpm Balanced Maximum, 4 in Length Through Bore, Metal, Metallic

• Patented Vari-Crown® tooth form for long life on Flex half
• Standard 20 deg pressure angle
• Heat treated bolts for greater strength
• Corrosion-resistant bolts and nuts for ease of maintenance
• Provides parallel, angular misalignment and end float
• Flex Half coupling interchangeable with industry standards
• Long universal hub used for AISE motor frames

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790492483_Specification_Sheet.pdf
