Browning® 1004118 1B184SK BRWN
Send NoImagePrint
  1. pin-int

Browning®
1004118

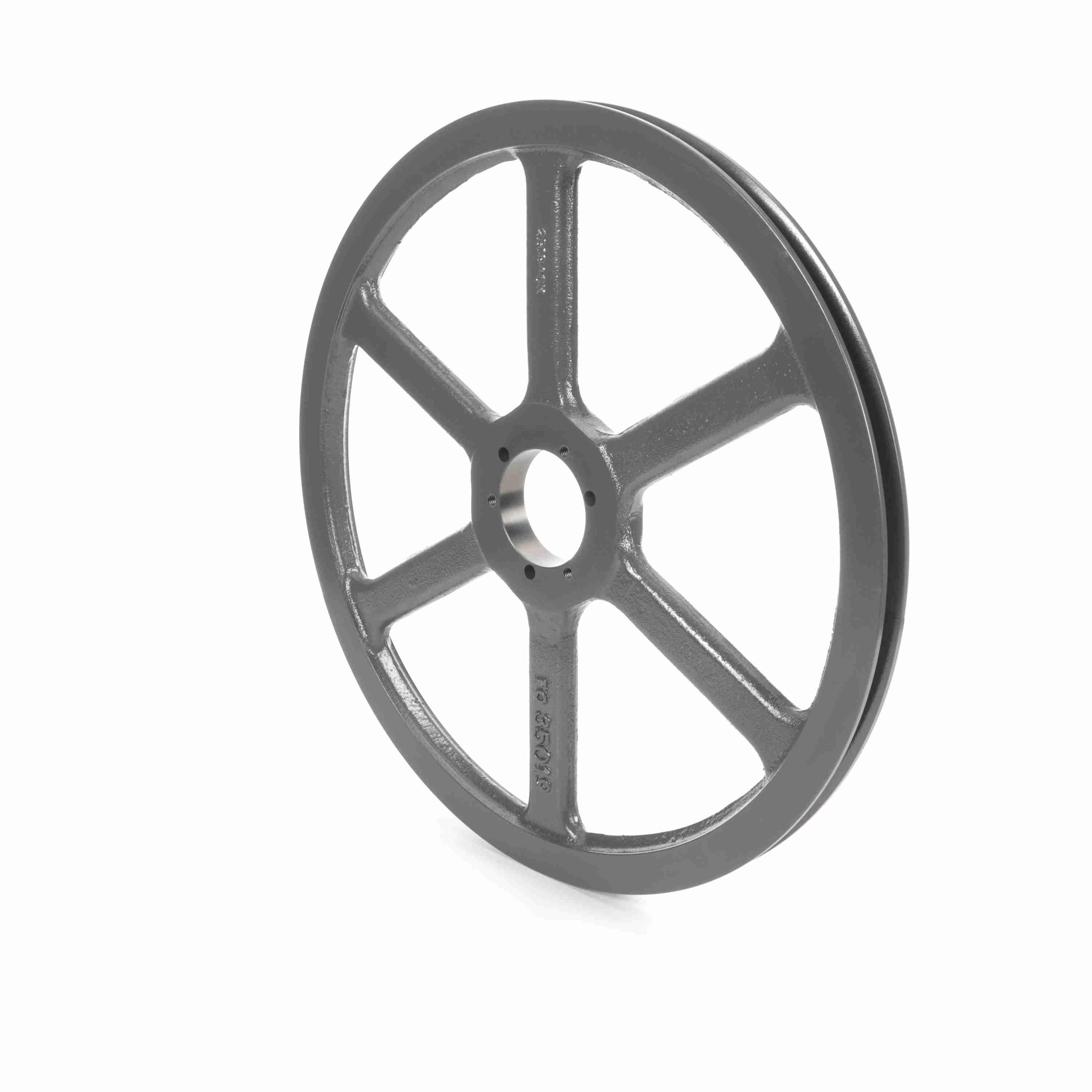

Browning® Classical Gripbelt® 1004118 Type D3 Single Groove Sheave, QD® Bore, 1/2 to 2-5/8 in Dia Bore, 18.68 in OD, 18.2 in (A)/18.7 in (B) Dia Pitch, 1 in W Face

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 1B184SK BRWN
  • MPN: 1004118
  • UPC: 662289322589
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type D3, QD® Bore, 1/2 to 2-5/8 in Bore, 18.68 in OD, 18.2 in (A)/18.7 in (B) Pitch Diameter, 1 in Face Width, 25/32 in Hub Projection, SK Bushing, 1-25/32 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron

  • Precision balanced
  • Easy-on/easy-off
  • QD® bushings can be reverse mounted
  • Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
Application      :      Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries
