Lovejoy®
69790401130

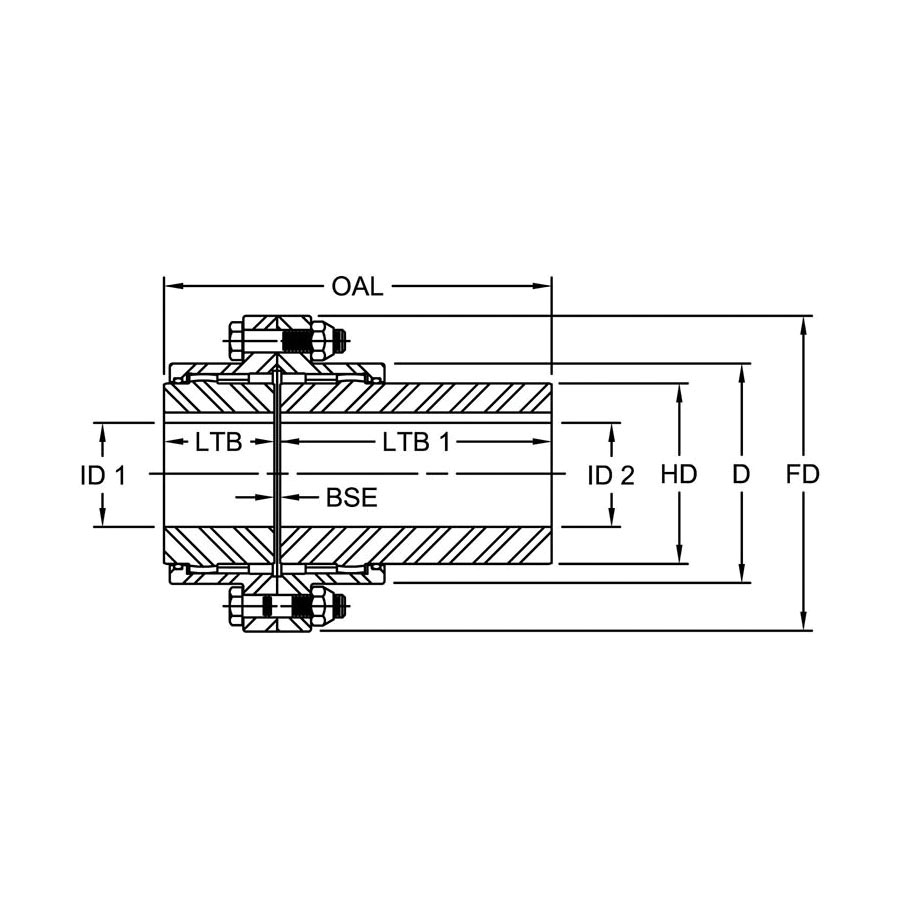

The FMM Type coupling consists of one universal hub (FMM Mill Type), one standard F Type flex hub, two standard F Type flex sleeves and one accessory kit. This coupling is supplied with exposed bolts as standard, with shrouded bolts are available upon request through size 5-1/2. The FMM Type Mill Universal hub accommodates AISE Mill Motor frame sizes (with the two sleeves and second hub being standard F Type).

Lovejoy® Mill Motor Gear Coupling Hub, Type FMM Rough Stock Bore Universal, 1-1/2 Coupling, 0.69 in Bore, 3 in Diameter Hub, 5500 rpm Unbalanced/8250 rpm Balanced Maximum, AISI 1045 Steel, Metallic

• Patented Vari-Crown® tooth form for long life
• Standard 20 deg pressure angle
• Heat treated bolts for greater strength
• Corrosion-resistant bolts and nuts for ease of maintenance
• Provides parallel, angular misalignment and end float
• Flex Half coupling interchangeable with industry standards
• Long universal hub supplied to customer specifications with straight or tapered bores

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790401130_Specification_Sheet.pdf
