Deltran
PMB-75B190-E18-MRD

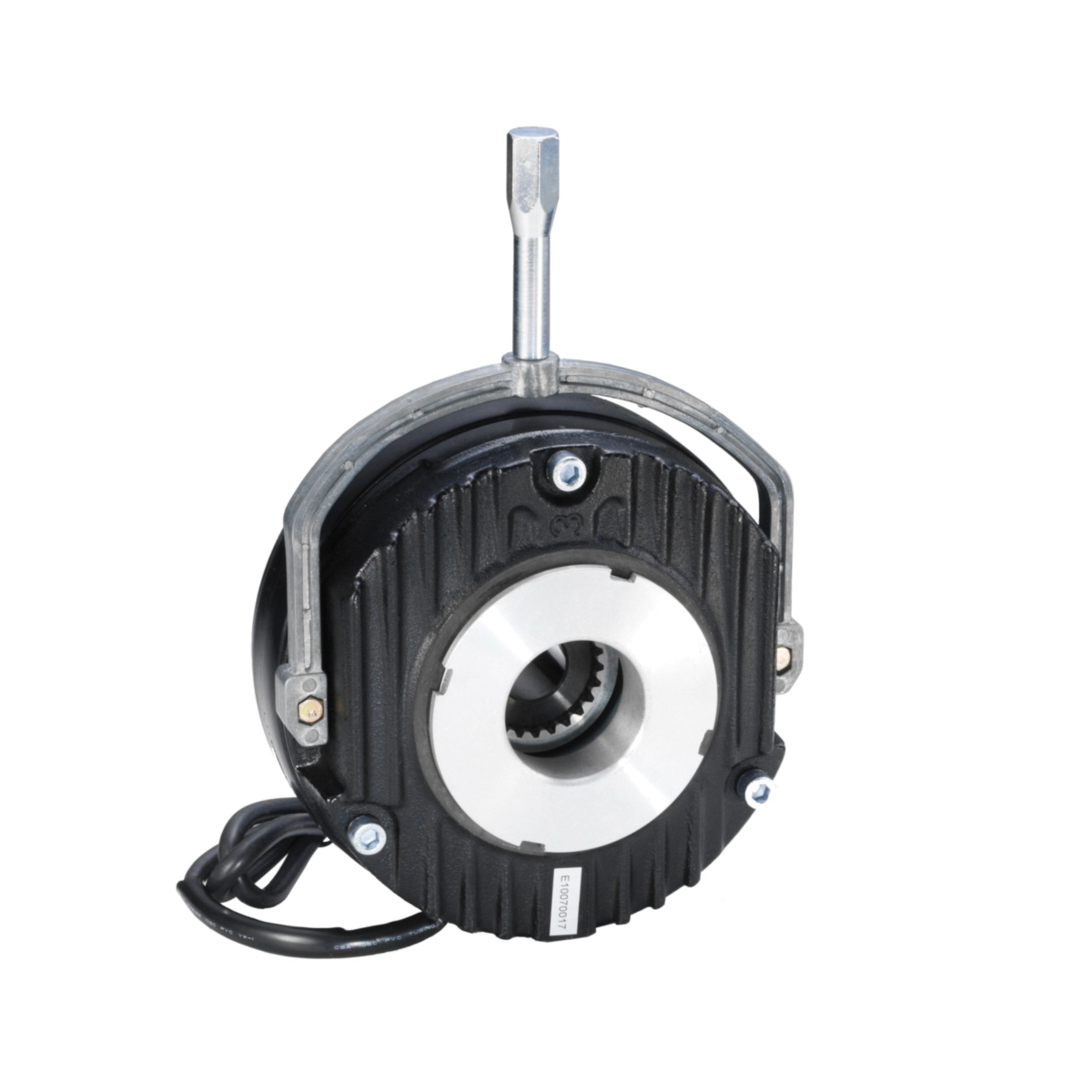

The PMB series is a power-off, DC spring set brake that provides a low-cost, multi-functional brake alternative for many applications. A simple, splined hub attaches to the shaft with a set screw and keyway and includes an anti-rattle feature for quiet operation. The series offers a superior torque to size ratio and heat dissipation. An adjustment collar allows the torque to be varied to the application. These brakes easily mount to the motor or the frame mounting hardware included. Fully potted coils meet minimum requirements for class F insulation.

Deltran Power-Off Brake, Series: PMB, 1-1/8 in Bore, 7.402 in OD, 708 in-lb Static Torque, 190 VDC, 65 W Power, 3000 rpm Maximum, Burnished Steel

• Torque adjustment collar allows the torque to be varied depending on application
• Engineered friction material on rotor assembly boosts maximum brake performance and extends life
• Brake easily mounts to motor or frame, mounting hardware included with brake, simple splinted hub attaches to shaft with set screw and keyway provided
• Brake case design offers excellent heat dissipation
• Fully potted coils meet minimum requirements for class F insulation
• Splined hub with anti-rattle feature promotes quiet operation
• Brake leads can be customized connectors, sleeving to meet special requirements
• Dust cover keeps foreign materials from interfering with brake actuation
• Manual release lever (option) provides override to release brakes in the absence of power
• Size 7.4 frame
• Holding type motion power-off brake
