Fenner Drives® B602207

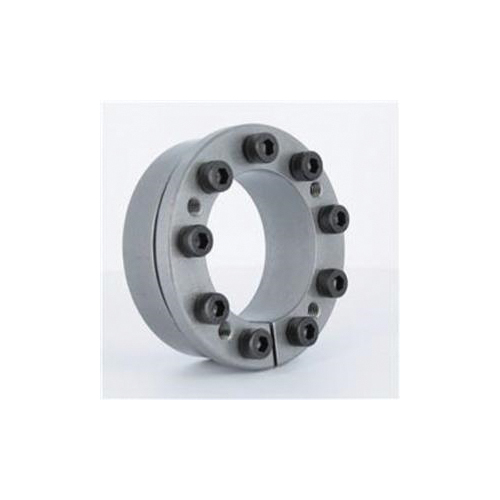

Fenner Drives® B-LOC® B602207 B106 Single Taper Keyless Bushing, 2-7/16 in Dia Bore, 3.74 in OD, 1.358 in OAL, Steel
- Manufacturer: Fenner Drives
- Brand: Fenner Drives®
- BSC Item#: B106-2-7/16 BLOC
- MPN: B602207
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
The B-LOC® B106 series 2-7/16 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 2-7/16 in Dia by means of a mechanical interference fit and transmits up to a maximum of 2102 lb-ft of torque.
Fenner Drives® B-LOC® Keyless Bushing, Single Taper, Series: B106, 2-7/16 in Bore Dia, 3.74 in Outside Dia, 2102 ft-lb Transmissible Torque, 20693 lb Transmissible Thrust, 18638 psi Hub Contact Pressure, M8 x 25 Screw, 1.358 in Overall Length, Steel
- Shallow and single taper design with integrated push-off threads
- Exceptional concentricity
- No axial movement during installation
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
Instruction/Ins...
| Standard/Approvals | : | ISO 4762|RoHS Compliant |
| Application | : | For applications where having no axial movement of the mounted component relative to the shaft during tightening is critical and recessed mounting is not important |
