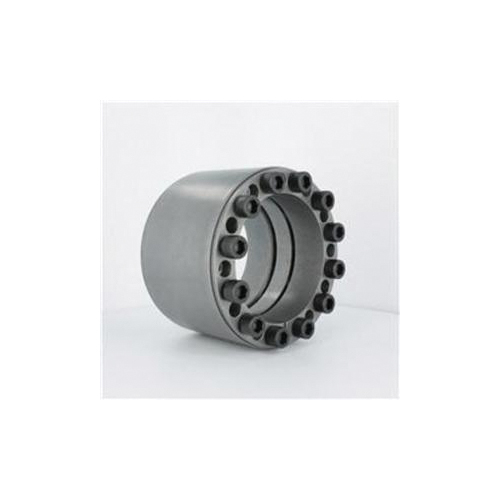

Fenner Drives®
B121110

The B-LOC® B112 series 110 mm keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 110 mm Dia by means of a mechanical interference fit and also transmits up to a maximum of 32666 N-m torque.

Fenner Drives® B-LOC® Keyless Bushing, Double Taper Heavy Duty, Series: B112, 110 mm Bore Dia, 155 mm Outside Dia, 32666 N-m Transmissible Torque, 593927 N Transmissible Thrust, 145 N/sq-mm Hub Contact Pressure, M12 x 80 Screw, 102 mm Overall Length, Steel

• Wide, double taper design for enhanced torque transmission and bending moment capacity
• Exceptional concentricity with thru-bored hubs
• No axial movement during installation
• Self-centering
• Eliminates need to hold shaft or lock machine while applying installation torque
• Recessed installation without the need for a counter bore
• Ability to transmit higher torques
• True zero-backlash
• Less equipment downtime
• Ability to mount over existing keyways
• Complete axial and radial adjustability
• Simple installation, adjustment and removal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fenner_B0441_Manual.pdf
