Fenner Drives®
T402315

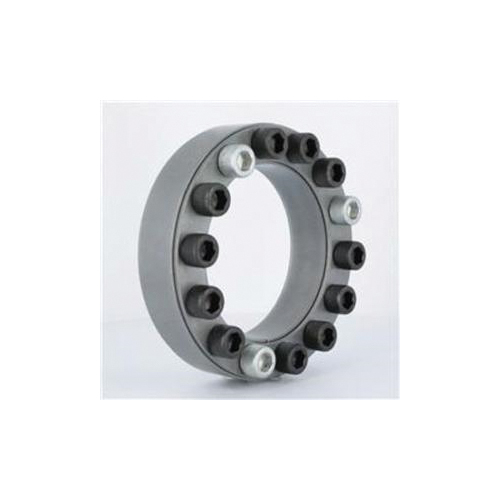

The B-LOC® B400 series 3-15/16 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 3-15/16 in Dia by means of a mechanical interference fit and transmits up to a maximum of 9471 lb-ft of torque.

Fenner Drives® B-LOC® Keyless Bushing, Double Taper, Series: B400, 3-15/16 in Bore Dia, 5.709 in Outside Dia, 9471 ft-lb Transmissible Torque, 57726 lb Transmissible Thrust, 26204 psi Hub Contact Pressure, M12 x 30 Screw, 1.772 in Overall Length, Steel

• Self-releasing double taper design permits simple adjustment and removal
• No axial movement during installation
• Recessed installation without the need for a counterbore
• Ability to transmit higher torques
• True zero-backlash
• Less equipment downtime
• Ability to mount over existing keyways
• Complete axial and radial adjustability
• Simple installation, adjustment and removal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fenner_B0441_Manual.pdf
