Fenner Drives®

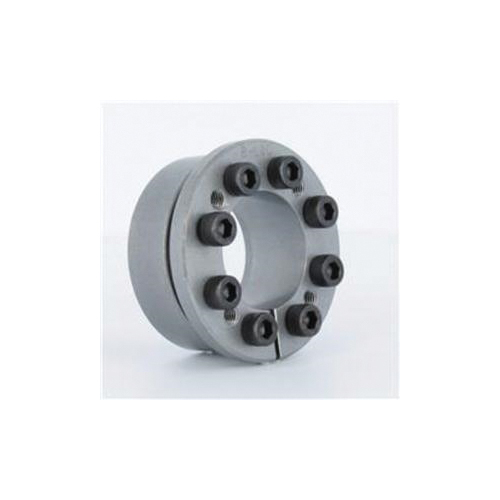

B602104

The B-LOC® B106 series 1-1/4 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 1-1/4 in Dia by means of a mechanical interference fit and transmits up to a maximum of 500 lb-ft of torque.

Fenner Drives® B-LOC® Keyless Bushing, Single Taper, Series: B106, 1-1/4 in Bore Dia, 2.362 in Outside Dia, 500 ft-lb Transmissible Torque, 9595 lb Transmissible Thrust, 16099 psi Hub Contact Pressure, M6 x 20 Screw, 1.122 in Overall Length, Steel

• Shallow and single taper design with integrated push-off threads
• Exceptional concentricity
• No axial movement during installation
• Ability to transmit higher torques
• True zero-backlash
• Less equipment downtime
• Ability to mount over existing keyways
• Complete axial and radial adjustability
• Simple installation, adjustment and removal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fenner_B0441_Manual.pdf
