Gates® Power Transmission
TP711-3M-15

Gates® PowerGrip® HTD® Twin Power® belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. They have nylon facing on both tooth sides to provide equal load carrying capabilities between the sides.

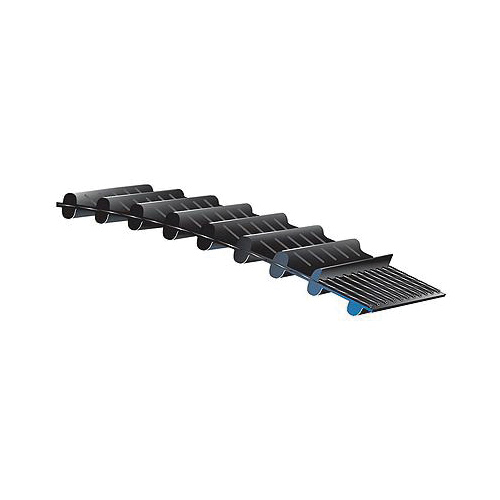

Gates® Power Transmission PowerGrip® HTD® Twin Power® Synchronous Belt, Double Sided, Series: 9252, 237 Teeth, 3 mm Pitch, 711 mm Overall Length, 15 mm Width, -30 to 100 deg C, Curvilinear Tooth Profile, Neoprene, Fiberglass Reinforced

• Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
• Neoprene body provides protection against grime, grease, oil and moisture
• Nylon tooth facing provides a durable wear surface to improve service life
• Runs quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
• 30% increase in horsepower ratings compared to traditional timing belts
• Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
• Belt capacity is equal to standard single sided PowerGrip® HTD® belts

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92520325_Catalog.pdf
• Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92520325_Service_Manual.pdf
