Gates® Power Transmission
187L050

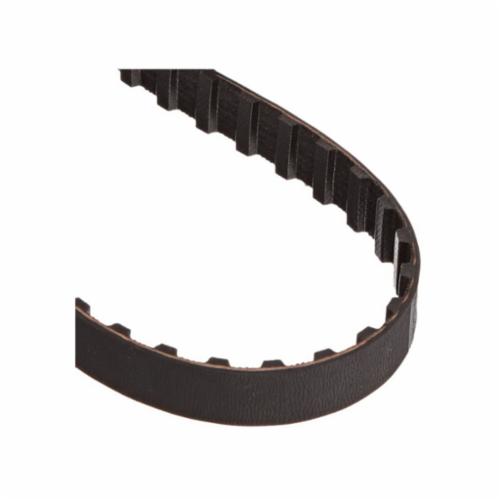

Gates® Power Transmission 187L050 PowerGrip® 9257 Type L Timing Belt, 50 Teeth, 3/8 in Pitch, 18-3/4 in OAL, 1/2 in W, Neoprene

  • Manufacturer: Gates Corp
  • Brand: Gates® Power Transmission
  • BSC Item#: 187L050 GATE
  • MPN: 187L050
  • UPC: 072053564211
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Gates® Power Transmission Timing Belt, Type L, Series: PowerGrip® 9257, 50 Teeth, 3/8 in Pitch, 18-3/4 in Overall Length, 1/2 in Width, 1.88 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced

  • The trapezoidal tooth profile makes this belt well suited for use in positioning applications
  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Neoprene body provides protection against grime, grease, oil and moisture
  • Nylon tooth facing provides a durable wear surface for longservice life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_187L050_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_187L050_Specification_Sheet.pdf
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_5L290K_Manual.pdf
Standard/Approvals      :      RMA Standard
Application      :      For office machines, machine tools, postage equipment, sewing machines, vending machines, agriculture, outdoor power equipment, food processing, HVAC, oil fields, wood, paper, sand and gravel applications
