Gates® Power Transmission
2/5VXP1320

Introducing Gates® new patented high performance molded notch PowerBand® V-belt. Transmits an average 50% more horsepower than our standard Super HC® molded notch PowerBand® belts, which helps reduce the overall drive width, weight and cost. The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Power Transmission Super HC® XP™ PowerBand® V-Belt, Heavy Duty Premium Notched, Series: 9694, 5VXP Section, 5/8 in Top Width, 132.96 in Outside Length, 35/64 in Thickness, 2 Ribs, -60 to 250 deg F, EPDM, Flex-Bonded Aramid Reinforced

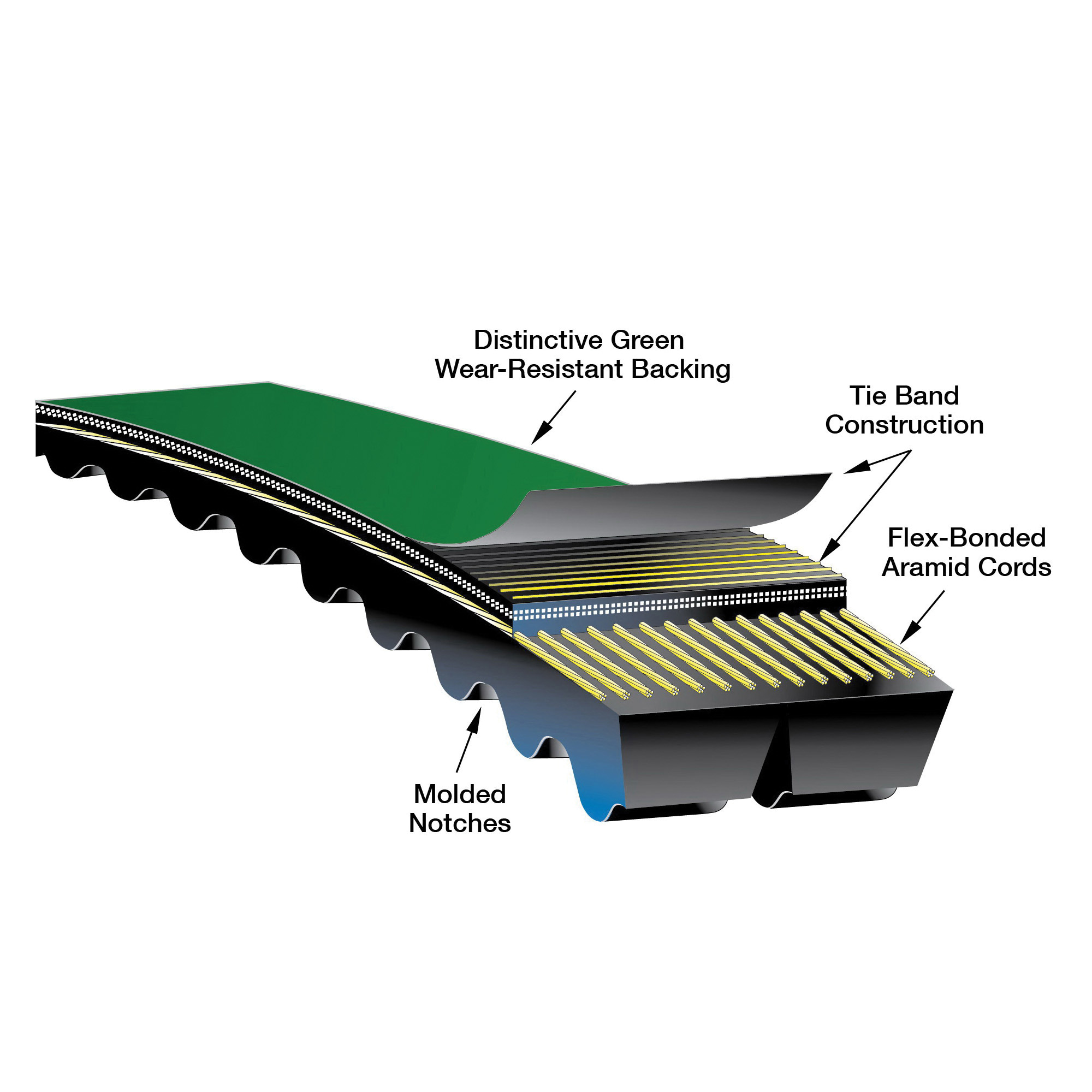

• Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
• Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
• The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
• Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel
• Patented ethylene material construction provides -60 to 250 deg F temperature range to resist belt cracking
• Distinctive green backing provides protection and wear resistance
• Reduced drive width and cost
• Improved energy efficiency over smooth V-belts

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf
