Boston Gear®
WC726-600-G

Our standard 700 series, the heart of Boston Gear®'s speed reducer product line, has been serving industry reliably for over 40 years. Its proven modular design has set the industry standard for performance and is the most imitated product in today's worm gear speed reducer market. Its multi position mounting flexibility allows for installation in virtually any position, while internal baffles assure positive, leak free venting.

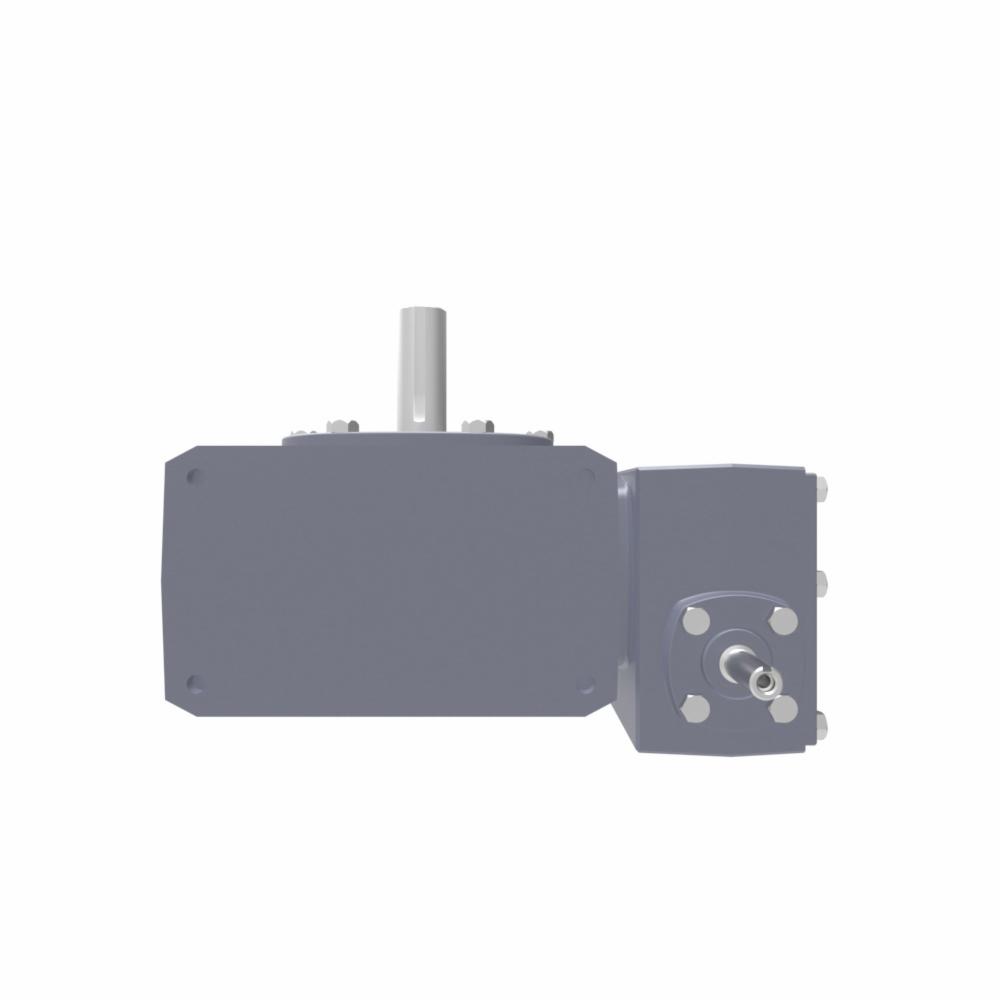

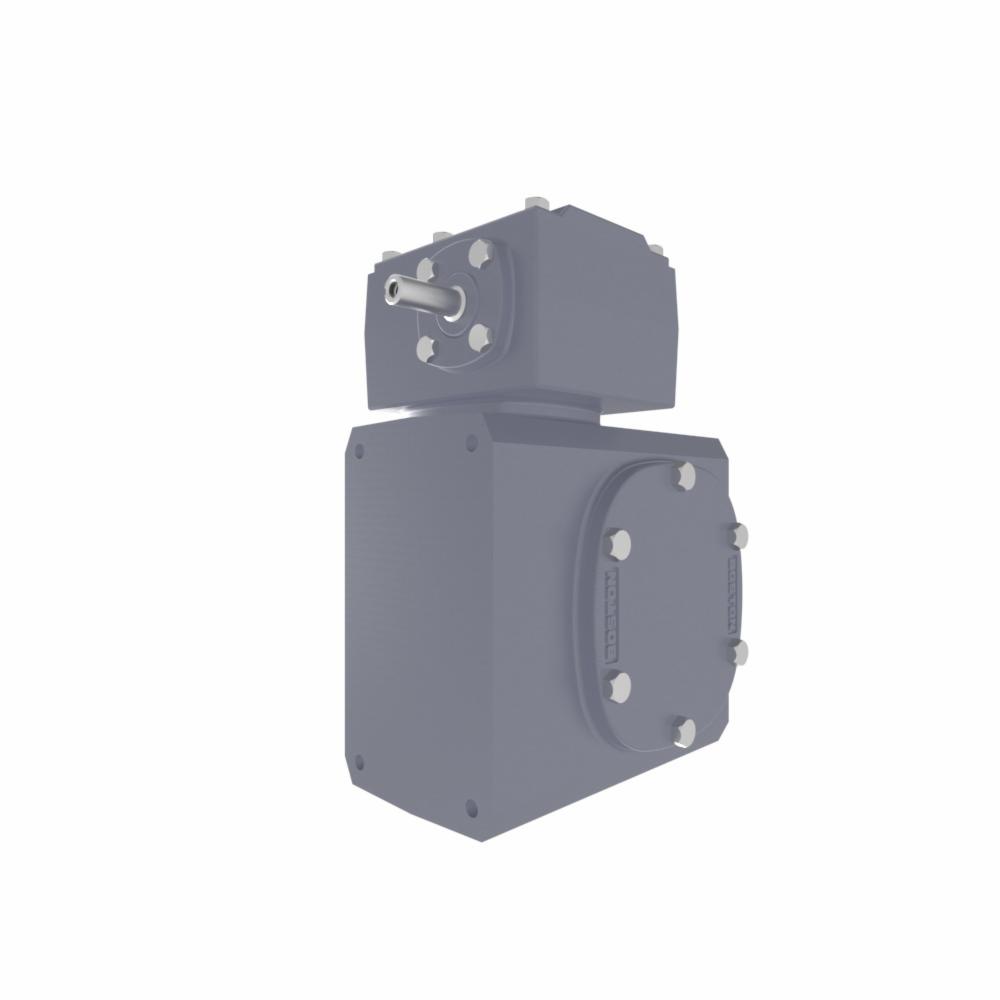

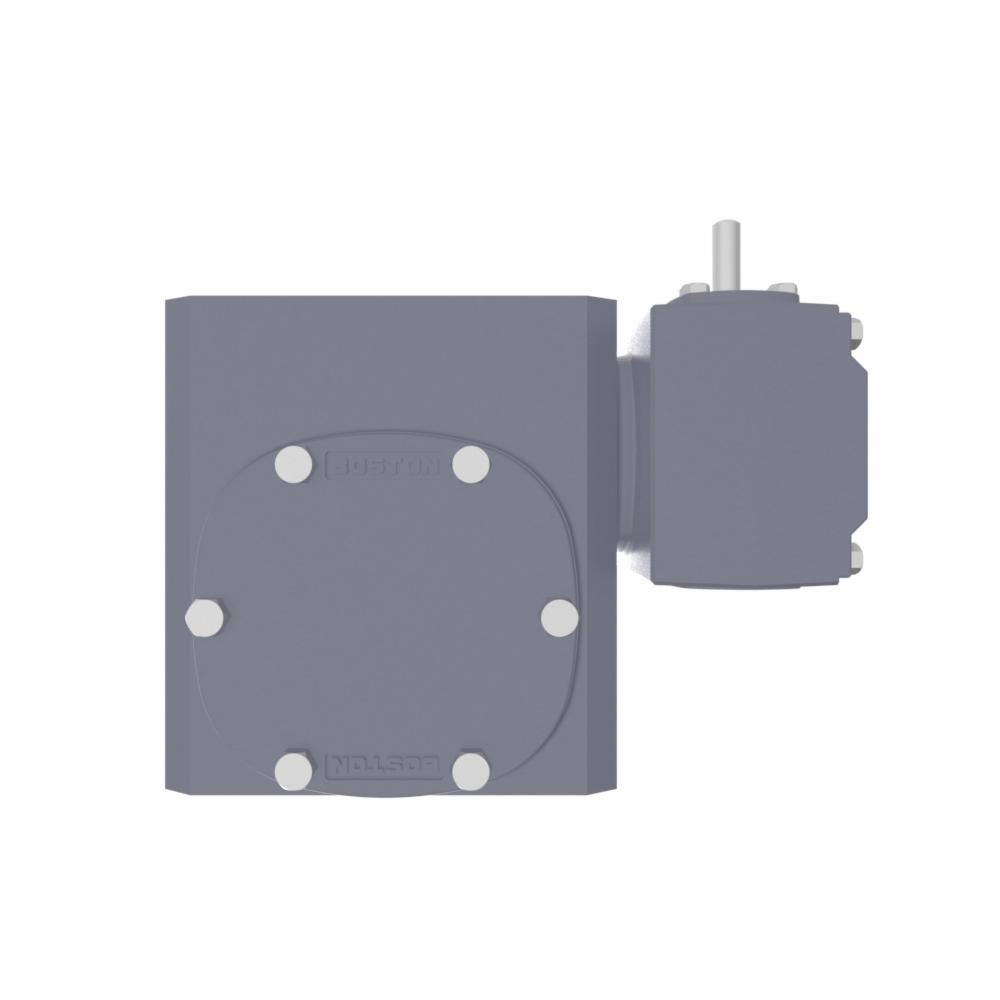

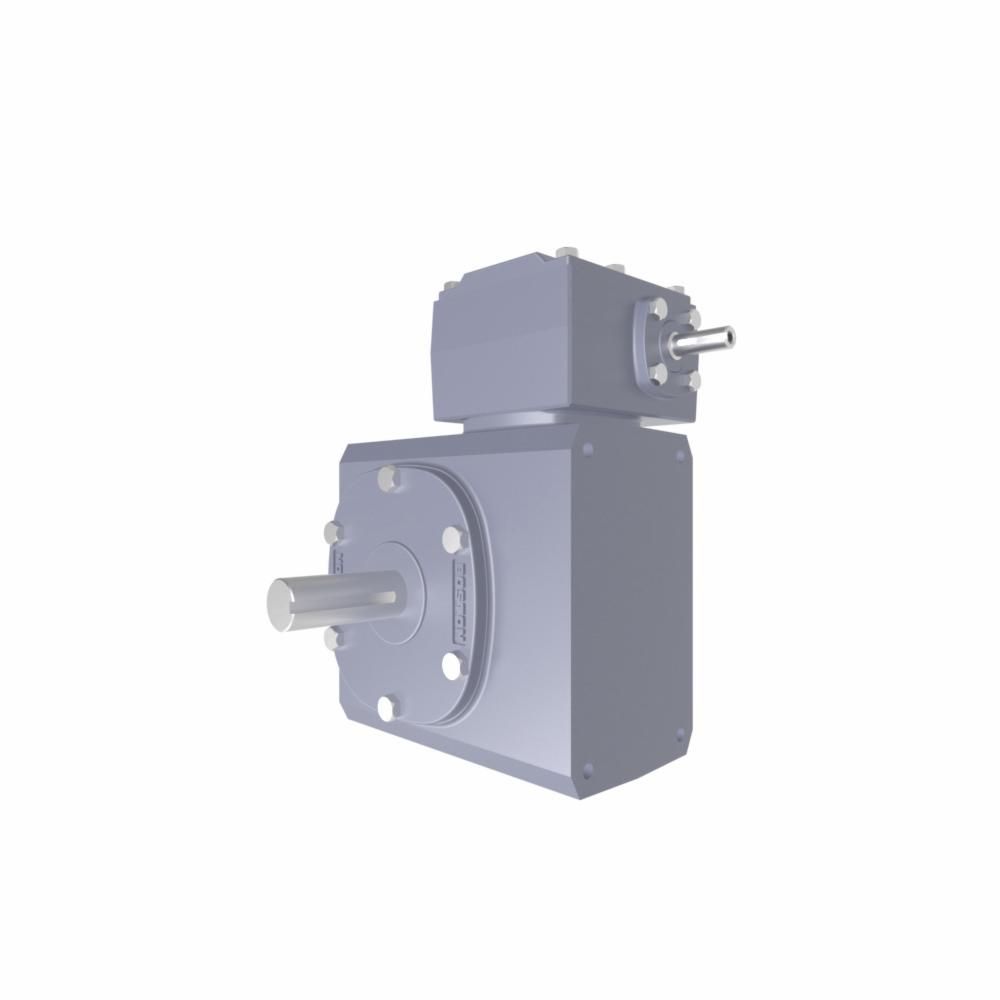

Boston Gear® Right Angle Helical Worm Gear Drive, Double Reduction, Series: 700, 600:1 Gear Ratio, 0.25 hp Input/0.092 hp Output/0.25 hp Motor, No Flange Input, Solid Projecting Shaft Output, 0.4995 in Input, 1-1/8 in Output, 2.9 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2000 in-lb, 2.62 in Centre Distance, 0.37 % Efficiency, Klubersynth UH1 6-460 Lubrication, No Base Mount, Cast Iron, Standard Gray Painted, 11.09 in L x 9.47 in W x 8.56 in H

• Precision ground worm threads maximize gearbox efficiency
• At low ratio efficiencies of 90 to 95% are common
• The 700 series large oil reservoir provides efficient heat dissipation and lubrication for longer operating life
• Its multi position mounting flexibility allows for installation in virtually any position
• Housings are straddle milled, top and bottom for precise alignment of horizontal and vertical bases
• Internal baffles assure positive and leak free venting
• The 700 series rugged housing, fabricated of fine grained, gear quality cast iron, provides maximum strength for maximum durability, as well as greater precision during worm and gear alignment
• Boston Gear®'s 700 series high strength bronze worm gear is straddle mounted between heavy duty tapered roller bearings to increase thrust and overhung load capacities
• Our 700 series high strength steel output shaft assures capacity for high torque and overhung loads
• Pipe plugs allow easy fill, level and drain in any mounting position
• The 700 series super finished oil seal diameters on both input and output shafts extend seal life
• Standard oil seal
