Tsubaki® 50B20F-1H H50B20-1-1/2
Send NoImagePrint
  1. pin-int

Tsubaki®
50B20F-1H

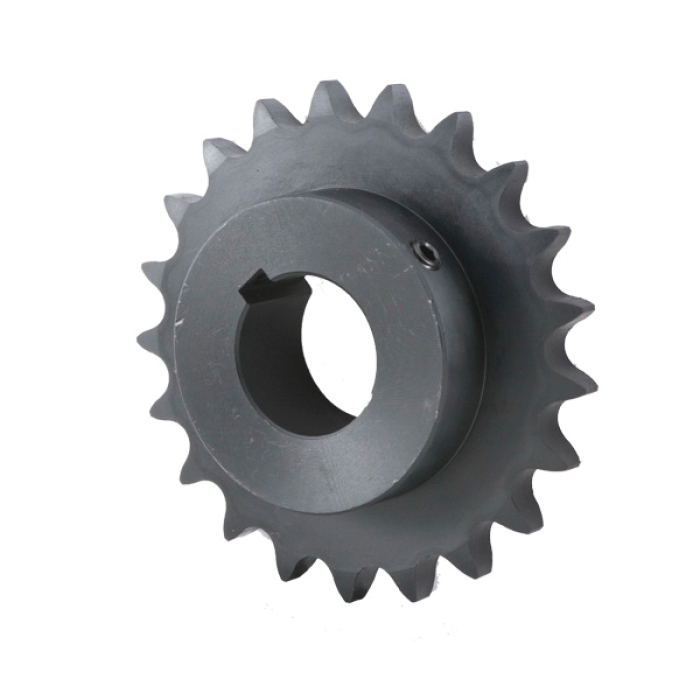

Tsubaki® 50B20F-1H Finished Bore Type B Single Pitch Roller Chain Sprocket, 1-1/2 in Dia Bore, 4.32 in OD, #50 Chain, 20 Teeth, 5/8 in Pitch, Carbon Steel

  • Manufacturer: U.S. Tsubaki Power Transmission
  • Brand: Tsubaki®
  • BSC Item#: H50B20-1-1/2
  • MPN: 50B20F-1H
  • UPC: 097039328007
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Associated with "B" style sprockets where the inside diameter of the hub is machined with a standard keyway and two set screws. Finished bore hubs can also be machined to specific requirements depending on the needs of the application.

Tsubaki® Single Pitch Roller Chain Sprocket, Finished Bore Type B, 1-1/2 in Bore Dia, 4.32 in Outside Dia, #50 Chain, 20 Teeth, 5/8 in Pitch, 3.995 in, 3 in Hub Dia, 3/8 in Screw, 3/8 x 3/16 in Keyway, 1 in Length Through Bore, Carbon Steel

  • pdf Tsubaki_JA_Cata... https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_JA_Catalog.pdf
  • pdf Tsubaki_50B20F_... https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_50B20F_1H_Specification_Sheet.pdf
Standard/Approvals      :      PTDA and CEMA Standard
Application      :      Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry
