Tsubaki® 40HPB 40HP10 UST
Send NoImagePrint
  1. pin-int

Tsubaki®
40HPB

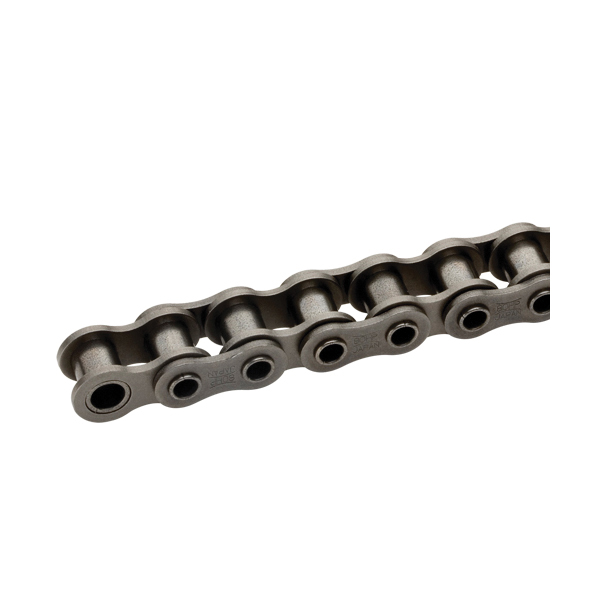

Tsubaki® 40HPB Hollow Pin Chain, 10 ft OAL, 1/2 in Pitch, 0.312 in Dia x 0.312 in W Roller

  • Manufacturer: U.S. Tsubaki Power Transmission
  • Brand: Tsubaki®
  • BSC Item#: 40HP10 UST
  • MPN: 40HPB
  • UPC: 097039182647
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Standard attachments are available for Tsubaki® Hollow Pin chain in both single and double pitch types. Cross rods may be inserted into any link without disassembling the chain.

Tsubaki® Hollow Pin Chain, 1/2 in Pitch, 0.224 in Pin Dia, 0.312 in Roller Dia, 0.312 in Roller Width, 0.472 in Plate Height, 0.06 in Plate Thickness, 1 Strand, 2430 lb Tensile, 10 ft Overall Length

  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_40CTACL_Manual.pdf
Standard/Approvals      :      ANSI 40
