Morse® 1125871 D50B23H
Send NoImagePrint
  1. pin-int

Morse®
1125871

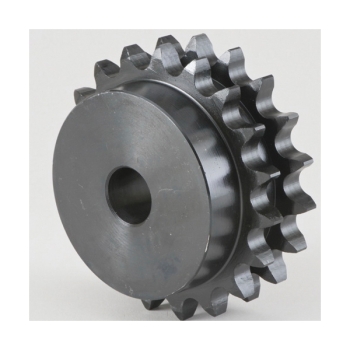

Morse® 1125871 Double Strand Type DB Roller Chain Sprocket With Hardened Teeth, 2-1/2 in Dia Bore, 4.92 in OD, 50 Chain, 23 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Morse®
  • BSC Item#: D50B23H
  • MPN: 1125871
  • UPC: 662289202379
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

Morse® Roller Chain Sprocket, Double Strand Type DB, 2-1/2 in Bore Dia, 4.92 in Outside Dia, 50 Chain, 23 Teeth, 5/8 in Pitch, 4.59 in, 3-5/8 in Hub Dia, 1-7/8 in Length Through Bore, Steel

  • Larger hub diameter allows larger bore capacity
  • Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
  • For 5/8 in pitch roller chain
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1125871_Specification_Sheet.pdf
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3402856_Catalog.pdf
Standard/Approvals      :      ISO 9001:2000|ISO 14001 Certified
Application      :      For use with 5/8 in pitch double strand chain
