Browning® 1109420 60A28
Send NoImagePrint
  1. pin-int

Browning®
1109420

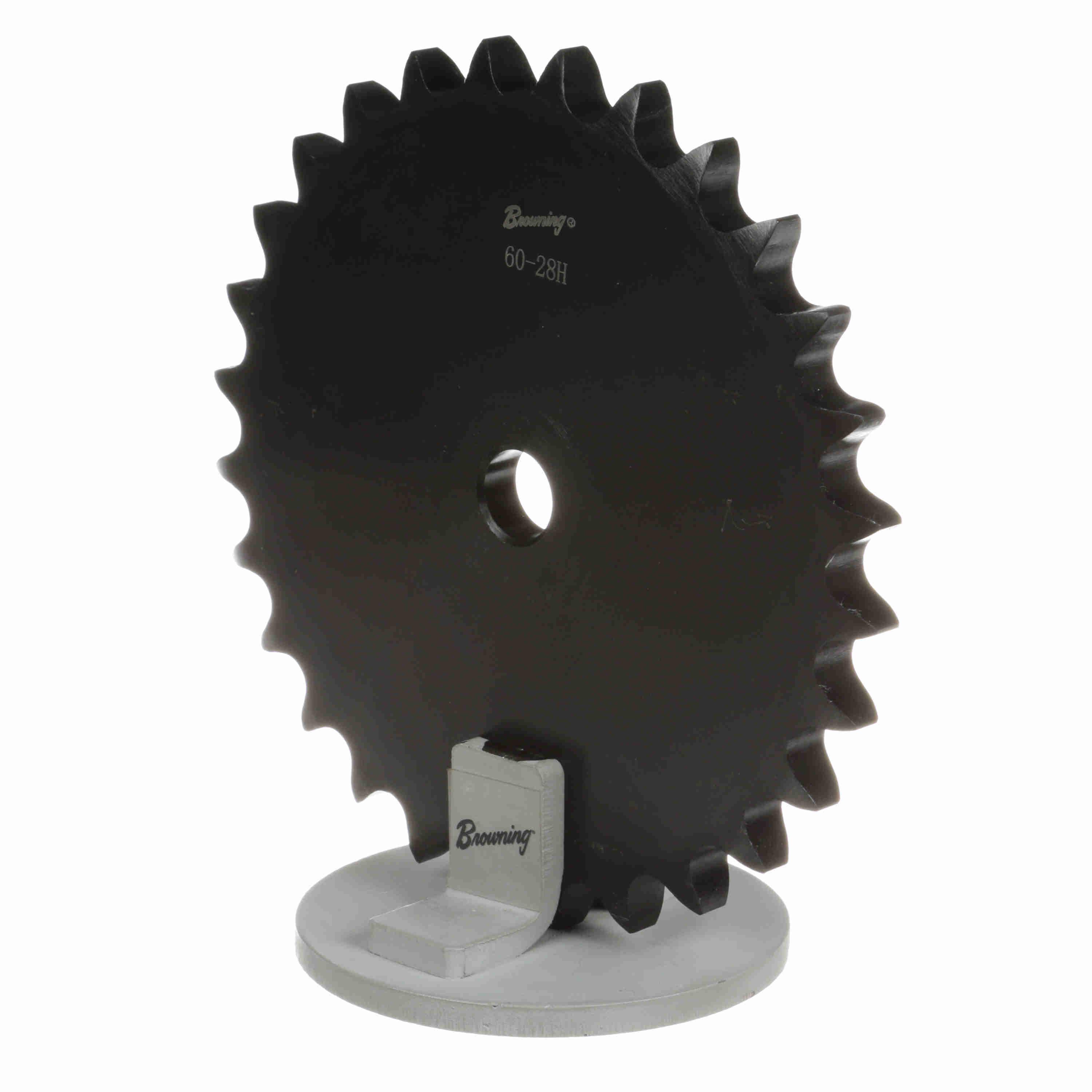

Browning® 1109420 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 7.11 in OD, #60 Chain, 28 Teeth, 3/4 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 60A28
  • MPN: 1109420
  • UPC: 662289317998
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® Roller Chain Sprocket, Single Strand Plate Type A, 3/4 in Bore, 7.11 in OD, #60 Chain, 28 Teeth, 3/4 in Pitch, 6.699 in Pitch Diameter, 0.459 in Length Through Bore, Steel

  • Solid plate
  • No hub projection
  • High quality, high carbon steel
  • Browning® offers type A plate steel sprockets in single strands
  • Lasts longer than sprockets made from low carbon steel
  • For use with 3/4 in pitch ANSI chain
  • Browning offers one of the largest selection of application shaft ready sprockets in the industry
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_60A10_Specification_Sheet.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
