Browning®
1073212

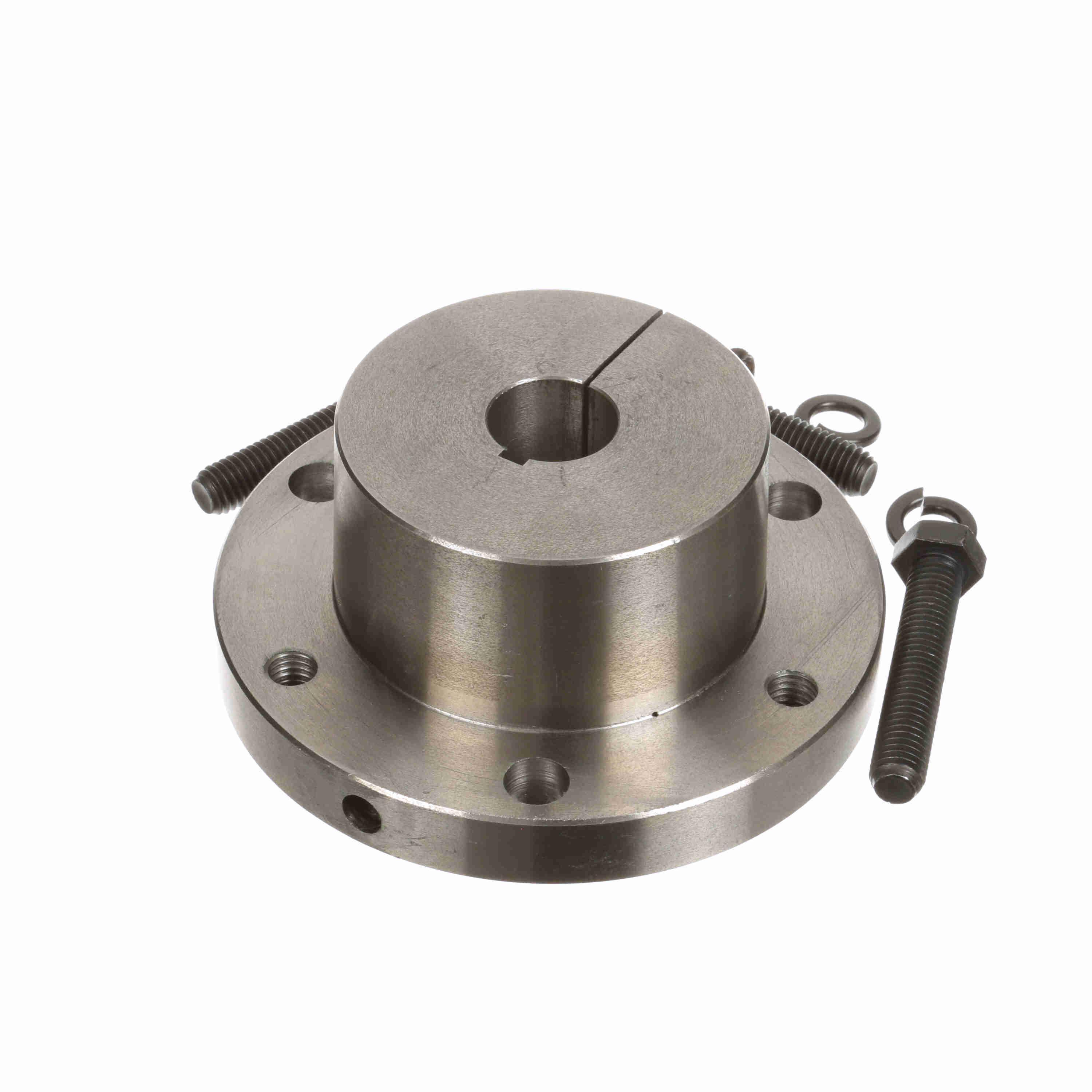

Browning® Q-D? Bushing, Type E, 1-1/8 in Bore, 3.834 in Barrel Diameter, 5 in Diameter Bolt Circle, 6 in Diameter Flange, 3/4 in Flange Thickness, 3 Bolt Holes, 1/2-13 x 2-3/4 in Screw, 20000 in-lb Torque, For Use With: Gearbelt® Sheaves, Sprockets and Pulleys, 2.64 in Overall Length, 1/4 x 1/8 in Keyway, Cast Iron

• Conventional mounting
• Molded Teeth - Shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Compression Section - Bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
• 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1074426_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
