Martin
50P15H

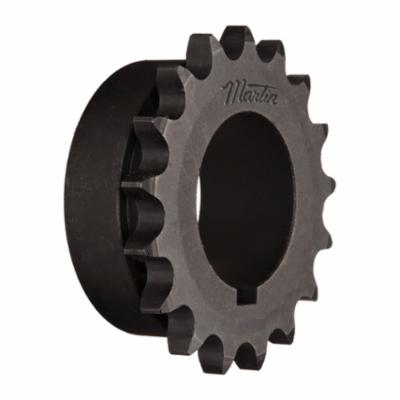

Martin 50P15H MST® P1 Bushed Solid Type 4 Split Single Roller Chain Sprocket With Recess Groove, 1/2 to 1-3/4 in Dia Bore, 3.315 in OD, 50 Chain, 15 Teeth, 5/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear
Brand: Martin
BSC Item#: 50P15H MART
MPN: 50P15H
UPC: 697950097718
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
FEATURES
Documents

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® P1 Bushed Solid Type 4, 1/2 to 1-3/4 in Bore Dia, 3.315 in Outside Dia, 50 Chain, 15 Teeth, 5/8 in Pitch, 3.006 in, 3 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
