Martin 35H19

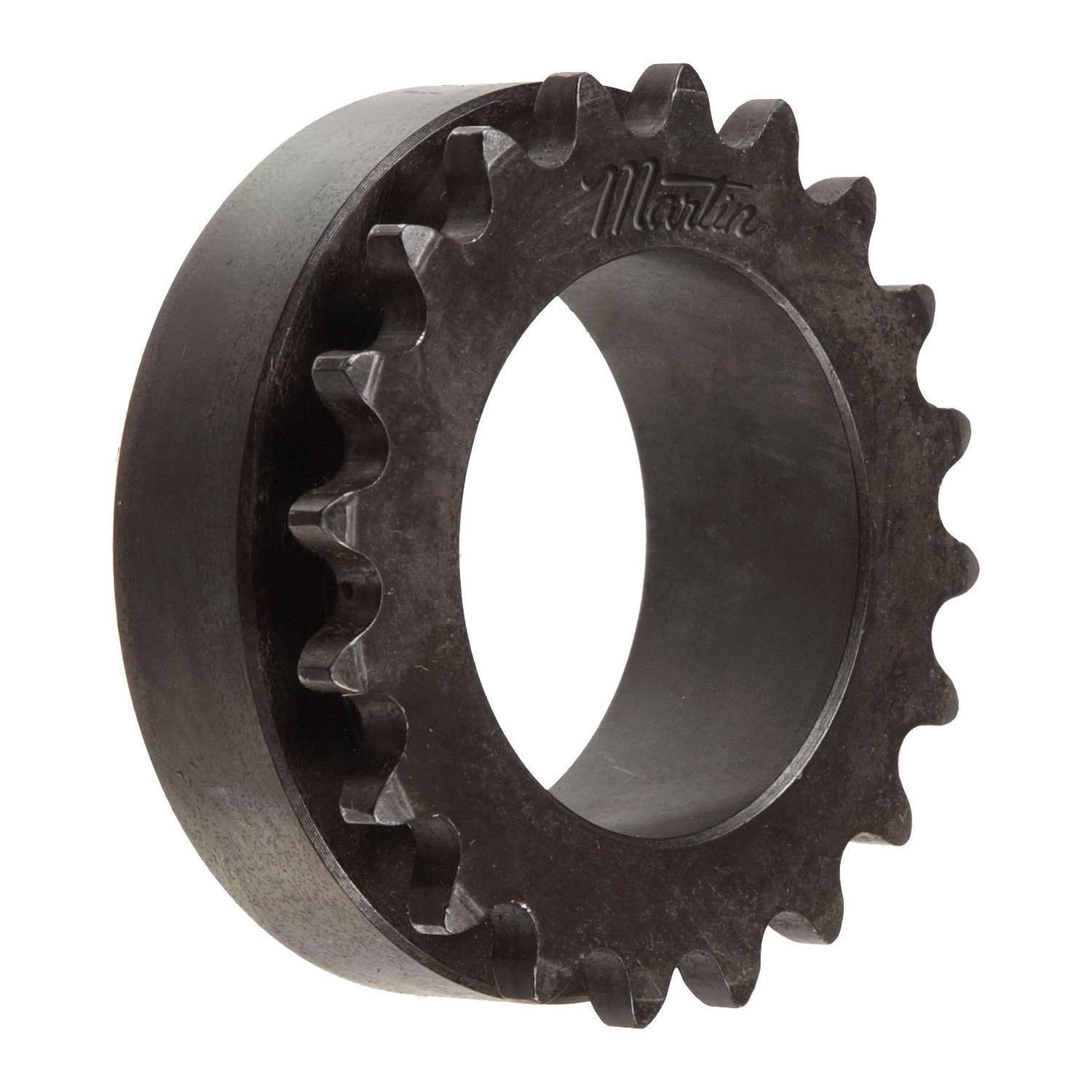

Martin 35H19 Type 3 Single Strand Solid Bushed Roller Chain Sprocket With Recess Groove, 3/8 to 1-1/2 in Dia Bore, 2.472 in OD, #35 Chain, 19 Teeth, 3/8 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 35H19 MART
- MPN: 35H19
- UPC: 697950097282
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Roller Chain Sprocket, Type 3 Single Strand Solid Bushed, 3/8 to 1-1/2 in Bore, 2.472 in OD, #35 Chain, 19 Teeth, 3/8 in Pitch, 2.2783 in Pitch Diameter, 2.510 in Diameter Hub, 7/8 in Length Through Bore, MST® H Bushing, Steel
- Interchangeable with other manufacturer's split-taper bushings
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
Catalog
| Standard/Approvals | : | ANSI Specified|B29.1 - 1975|CEMA Standard|MPTA|NIBA Certified|PTDA Approved |
